NSE7_SAC-6.2 Online Practice Questions and Answers

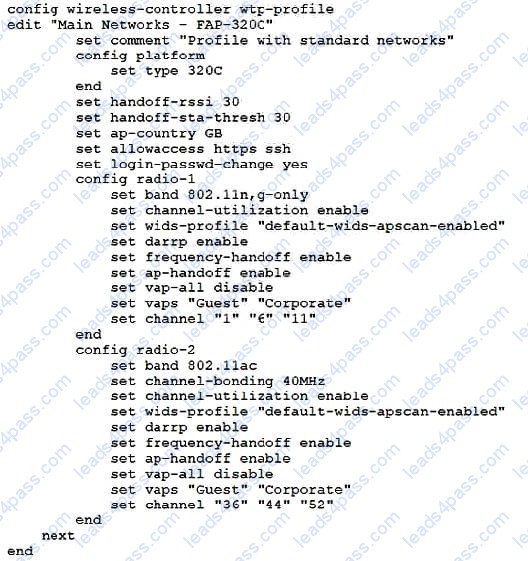

Refer to the exhibit.

In the WTP profile configuration shown in the exhibit, the AP profile is assigned to two FAP-320 APs that are installed in an open plan office.

1.

The first AP has 32 clients associated to the 5GHz radios and 22 clients associated to the 2.4GHz

radio.

2.

The second AP has 12 clients associated to the 5GHz radios and 20 clients associated to the 2.4GHz radio.

A dual band-capable client enters the office near the first AP and the first AP measures the new client at −33 dBm signal strength. The second AP measures the new client at −43 dBm signal strength.

In the new client attempts to connect to the corporate wireless network, to which AP radio will the client be associated?

A. The second AP 5GHz interface.

B. The first AP 2.4GHz interface.

C. The first AP 5GHz interface.

D. The second AP 2.4GHz interface.

What action does FortiSwitch take when it receives a loop guard data packet (LGDP) that was sent by itself?

A. The receiving port is shut down.

B. The sending port is shut down

C. The receiving port is moved to the STP blocking state.

D. The sending port is moved to the STP blocking state

What does DHCP snooping MAC verification do?

A. Drops DHCP release packets on untrusted ports

B. Drops DHCP packets with no relay agent information (option 82) on untrusted ports

C. Drops DHCP offer packets on untrusted ports

D. Drops DHCP packets on untrusted ports when the client hardware address does not match the source MAC address

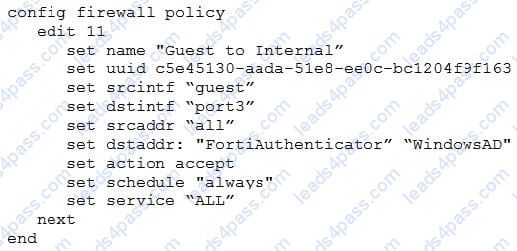

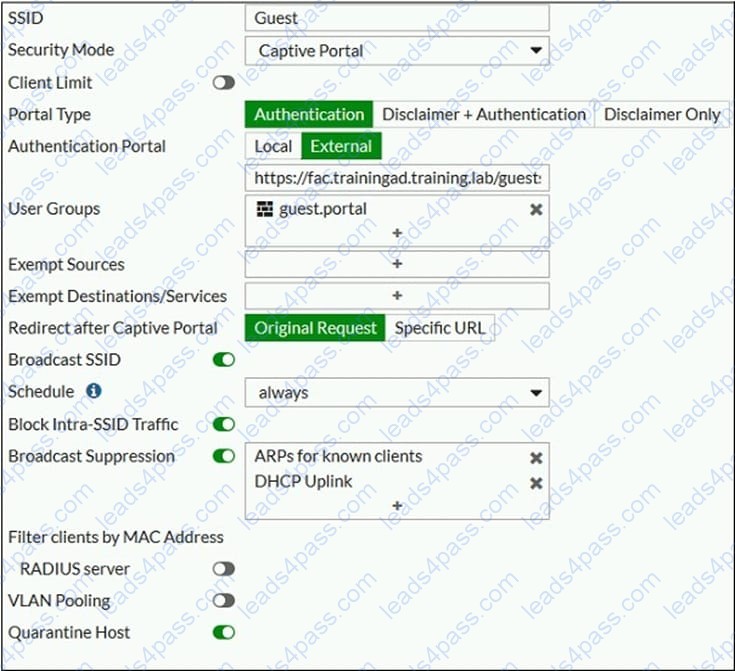

Refer to the exhibits.

Examine the firewall policy configuration and SSID settings.

An administrator has configured a guest wireless network on FortiGate using the external captive portal. The administrator has verified that the external captive portal URL is correct. However, wireless users are not able to see the captive portal login page.

Given the configuration shown in the exhibit and the SSID settings, which configuration change should the administrator make to fix the problem?

A. Enable the captive-portal-exemptoption in the firewall policy with the ID 11.

B. Apply a guest.portal user group in the firewall policy with the ID 11.

C. Disable the user group from the SSID configuration.

D. Include the wireless client subnet range in the Exempt Source section.

Refer to the exhibits.

Examine the VAP configuration and the WiFi zones table shown in the exhibits.

Which two statements describe FortiGate behavior regarding assignment of VLANs to wireless clients? (Choose two.)

A. FortiGate will load balance clients using VLAN 101 and VLAN 102 and assign them an IP address from the 10.0.3.0/24 subnet.

B. Clients connecting to APs in the Floor 1 group will not be able to receive an IP address.

C. All clients connecting to the Corp SSID will receive an IP address from the 10.0.3.1/24 subnet.

D. Clients connecting to APs in the Office group will be assigned an IP address from the 10.0.20.1/24 subnet.

Refer to the exhibit.

The exhibit shows a network topology and SSID settings.

FortiGate is configured to use an external captive portal. However, wireless users are not able to see the captive portal login page.

Which configuration change should the administrator make to fix the problem?

A. Create a firewall policy to allow traffic from the Guest SSID to FortiAuthenticator and Windows AD devices.

B. Enable the captive-portal-exemptoption in the firewall policy with the ID 10.

C. Remove guest.portal user group in the firewall policy.

D. FortiAuthenticator and WindowsAD address objects should be added as exempt sources.

Which CLI command should an administrator use to view the certificate validation process in real-time?

A. diagnose debug application certd -1

B. diagnose debug application fnbamd -1

C. diagnose debug application authd -1

D. diagnose debug application foauthd -1

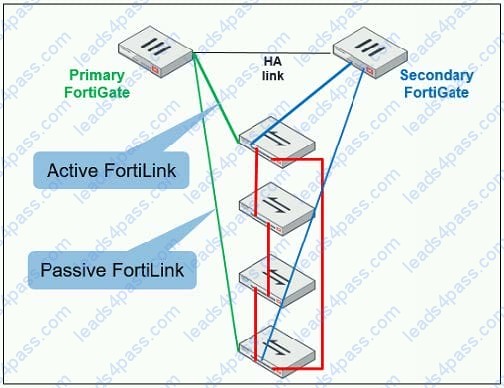

Refer to the exhibit.

The exhibit shows two FortiGate devices in active-passive HA mode, including four FortiSwitch devices

connected to a ring.

Which two configurations are required to deploy this network topology? (Choose two.)

A. Configure link aggregation interfaces on the FortiLink interfaces.

B. Configure the trunk interfaces on the FortiSwitch devices as MCLAG-ISL.

C. Enable fortilink-split-interfaceon the FortiLink interfaces.

D. Enable STP on the FortiGate interfaces.

Refer to the exhibit showing certificate values.

Wireless guest users are unable to authenticate because they are getting a certificate error while loading the captive portal login page. This URL string is the HTTPS POST URL guest wireless users see when attempting to access the network using the web browser:

https://fac.trainingad.training.com/guests/login/?loginandpost=https://auth.trainingad.training.1ab:1003/fgtauthandmagic=000a038293d1f411andusermac=b8:27:eb:d8:50:02andapmac=70:4c:a5:9d:0d:28andapip=10.10.100.2anduserip=10.0.3.1andssid=Guest03andapname=PS221ETF18000148andbssid=70:4c:a5:9d:0d:30

Which two settings are the likely causes of the issue? (Choose two.)

A. The external server FQDN is incorrect.

B. The FortiGate authentication interface address is using HTTPS.

C. The wireless user's browser is missing a CA certificate.

D. The user address is not in DDNS form.

A FortiGate has the following LDAP configuration.

On the Windows LDAP server 10.0.1.10, the administrator used dsquery, which returned the following output:

>dsquery user -samid admin*

"CN=Administrator,CN=Users,DC=trainingAD,DC=training,DC=lab"

According to the output, which FortiGate LDAP setting is configured incorrectly?

A. dn

B. sAMAccountName

C. username

D. cnid
