NSE7_EFW-6.4 Online Practice Questions and Answers

Examine the output from the BGP real time debug shown in the exhibit, then the answer the question below:

Which statements are true regarding the output in the exhibit? (Choose two.)

A. BGP peers have successfully interchanged Open and Keepalive messages.

B. Local BGP peer received a prefix for a default route.

C. The state of the remote BGP peer is OpenConfirm.

D. The state of the remote BGP peer will go to Connect after it confirms the received prefixes.

What events are recorded in the crashlogs of a FortiGate device? (Choose two.)

A. A process crash.

B. Configuration changes.

C. Changes in the status of any of the FortiGuard licenses.

D. System entering to and leaving from the proxy conserve mode.

Which statement about the designated router (DR) and backup designated router (BDR) in an OSPF multi-access network is true?

A. FortiGate first checks the OSPF ID to elect a DR.

B. Non-DR and non-BDR routers will form full adjacencies to DR and BDR only.

C. BDR is responsible for forwarding link state information from one router to another.

D. Only the DR receives link state information from non-DR routers.

Examine the output of the `get router info ospf neighbor' command shown in the exhibit; then answer the question below.

Refer to the exhibit, which shows the output of a debug command.

Which statement about the output is true?

A. TheOSPF routers with the IDs 0.0.0.69 and 0.0.0.117 are both designated routers for the war. l network.

B. The OSPF router with the ID 0.0.0.2 is the designated router for the ToRemote network.

C. The local FortiGate is the designated router for the wan1 network.

D. The interface ToRemote is a point-to-point OSPF network.

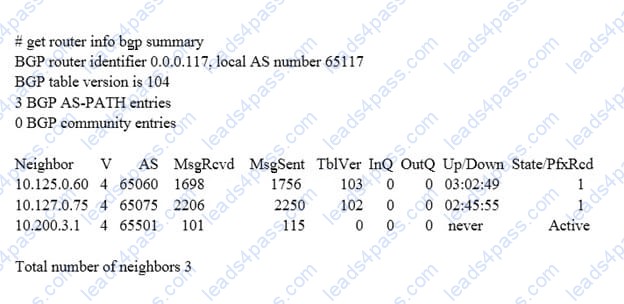

Examine the output of the `get router info bgp summary' command shown in the exhibit; then answer the question below.

Which statement can explain why the state of the remote BGP peer 10.200.3.1 is Connect?

A. The local peer is receiving the BGP keepalives from the remote peer but it has not received any BGP prefix yet.

B. The TCP session for the BGP connection to 10.200.3.1 is down.

C. The local peer has received the BGP prefixed from the remote peer.

D. The local peer is receiving the BGP keepalives from the remote peer but it has not received the OpenConfirm yet.

Examine the following partial outputs from two routing debug commands; then answer the question below.

# get router info kernel

tab=254 vf=0 scope=0type=1 proto=11 prio=0 0.0.0.0/0.0.0.0/0->0.0.0.0/0 pref=0.0.0.0

gwy=10.200.1.254 dev=2(port1)

tab=254 vf=0 scope=0type=1 proto=11 prio=10 0.0.0.0/0.0.0.0/0->0.0.0.0/0 pref=0.0.0.0

gwy=10.200.2.254 dev=3(port2)

tab=254 vf=0 scope=253type=1 proto=2 prio=0 0.0.0.0/0.0.0.0/.->10.0.1.0/24 pref=10.0.1.254

gwy=0.0.0.0 dev=4(port3)

# get router info routing-table all s*0.0.0.0/0 [10/0] via 10.200.1.254, portl [10/0] via 10.200.2.254, port2,

[10/0] dO.0.1.0/24 is directly connected, port3 dO.200.1.0/24 is directly connected, portl d0.200.2.0/24 is

directly connected, port2 Which outbound interface or interfaces will be used by this FortiGate to route web traffic from internal users to the Internet?

A. port!

B. port2.

C. Both portl and port2.

D. port3.

Examine the output of the `diagnose sys session list expectation' command shown in the exhibit; than answer the question below.

Which statement is true regarding the session in the exhibit?

A. It was created by the FortiGate kernel to allow push updates from FotiGuard.

B. It is for management traffic terminating at the FortiGate.

C. It is for traffic originated from the FortiGate.

D. It was created by a session helper or ALG.

An administrator has decreased all the TCP session timers to optimize the FortiGate memory usage. However, after the changes, one network application started to have problems. During the troubleshooting, the administrator noticed that the FortiGate deletes the sessions after the clients send the SYN packets, and before the arrival of the SYN/ACKs. When the SYN/ACK packets arrive to the FortiGate, the unit has already deleted the respective sessions. Which TCP session timer must be increased to fix this problem?

A. TCP half open.

B. TCP half close.

C. TCP time wait.

D. TCP session time to live.

Examine the output of the 'diagnose debug rating' command shown in the exhibit; then answer the question below.

Which statement are true regarding the output in the exhibit? (Choose two.)

A. There are three FortiGuard servers that are not responding to the queries sent by the FortiGate.

B. The TZ value represents the delta between each FortiGuard server's time zone and the FortiGate's time zone.

C. FortiGate will send the FortiGuard queries to the server with highest weight.

D. A server's round trip delay (RTT) is not used to calculate its weight.

An administrator cannot connect to the GIU of a FortiGate unit with the IP address 10.0.1.254. The administrator runs the debug flow while attempting the connection using HTTP. The output of the debug flow is shown in the exhibit:

Based on the error displayed by the debug flow, which are valid reasons for this problem? (Choose two.)

A. HTTP administrative access is disabled in the FortiGate interface with the IP address 10.0.1.254.

B. Redirection of HTTP to HTTPS administrative access is disabled.

C. HTTP administrative access is configured with a port number different than 80.

D. The packet is denied because of reverse path forwarding check.
