NSE7_EFW-6.2 Online Practice Questions and Answers

Examine the IPsec configuration shown in the exhibit; then answer the question below. Questions and Answers PDF P-3

An administrator wants to monitor the VPN by enabling the IKE real time debug using these commands: diagnose vpn ike log-filter src-addr4 10.0.10.1 diagnose debug application ike -1 diagnose debug enable The VPN is currently up, there is no traffic crossing the tunnel and DPD packets are being interchanged between both IPsec gateways. However, the IKE real time debug does NOT show any output.

Why isn't there any output?

A. The IKE real time shows the phases 1 and 2 negotiations only. It does not show any more output once the tunnel is up.

B. The log-filter setting is set incorrectly. The VPN's traffic does not match this filter.

C. The IKE real time debug shows the phase 1 negotiation only. For information after that, the administrator must use the IPsec real time debug instead: diagnose debug application ipsec -1.

D. The IKE real time debug shows error messages only. If it does not provide any output, it indicates that the tunnel is operating normally.

An administrator has configured a dial-up IPsec VPN with one phase 2, extended authentication (XAuth)

and IKE mode configuration. The administrator has also enabled the IKE real time debug:

diagnose debug application ike-1

diagnose debug enable

In which order is each step and phase displayed in the debug output each time a new dial-up user is

connecting to the VPN?

A. Phase1; IKE mode configuration; XAuth; phase 2.

B. Phase1; XAuth; IKE mode configuration; phase2.

C. Phase1; XAuth; phase 2; IKE mode configuration.

D. Phase1; IKE mode configuration; phase 2; XAuth.

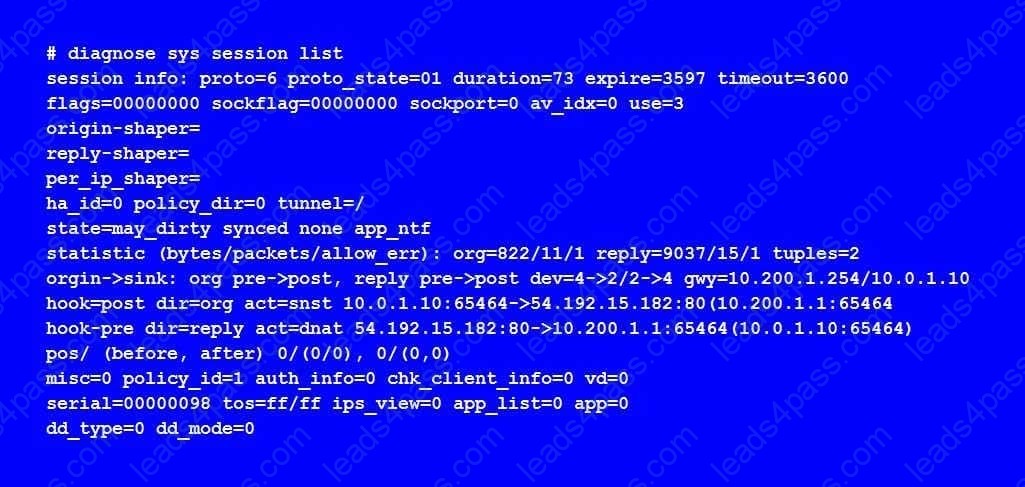

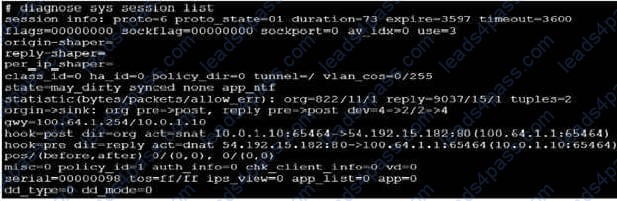

A FortiGate has two default routes: All Internet traffic is currently using port1. The exhibit shows partial information for one sample session of Internet traffic from an internal user:

What would happen with the traffic matching the above session if the priority on the first default route (IDd1) were changed from 5 to 20?

A. Session would remain in the session table and its traffic would keep using port1 as the outgoing interface.

B. Session would remain in the session table and its traffic would start using port2 as the outgoing interface.

C. Session would be deleted, so the client would need to start a new session.

D. Session would remain in the session table and its traffic would be shared between port1 and port2.

View the exhibit, which contains the output of diagnose sys session stat, and then answer the question below.

Which statements are correct regarding the output shown? (Choose two.)

A. There are 0 ephemeral sessions.

B. All the sessions in the session table are TCP sessions.

C. No sessions have been deleted because of memory pages exhaustion.

D. There are 166 TCP sessions waiting to complete the three-way handshake.

View the exhibit, which contains the output of a debug command, and then answer the question below.

Which of the following statements about the exhibit are true? (Choose two.)

A. In the network on port4, two OSPF routers are down.

B. Port4 is connected to the OSPF backbone area.

C. The local FortiGate's OSPF router ID is 0.0.0.4

D. The local FortiGate has been elected as the OSPF backup designated router.

Which of the following statements are correct regarding application layer test commands? (Choose two.)

A. They are used to filter real-time debugs.

B. They display real-time application debugs.

C. Some of them display statistics and configuration information about a feature or process.

D. Some of them can be used to restart an application.

View the exhibit, which contains the output of a BGP debug command, and then answer the question below.

Which of the following statements about the exhibit are true? (Choose two.)

A. For the peer 10.125.0.60, the BGP state of is Established.

B. The local BGP peer has received a total of three BGP prefixes.

C. Since the BGP counters were last reset, the BGP peer 10.200.3.1 has never been down.

D. The local BGP peer has not established a TCP session to the BGP peer 10.200.3.1.

View the global IPS configuration, and then answer the question below.

Which of the following statements is true regarding this configuration?

A. IPS will scan every byte in every session.

B. FortiGate will spawn IPS engine instances based on the system load.

C. New packets will be passed through without inspection if the IPS socket buffer runs out of memory.

D. IPS will use the faster matching algorithm which is only available for units with more than 4 GB memory.

Examine the following partial outputs from two routing debug commands; then answer the question below. # get router info kernel tab=254 vf=0 scope=0type=1 proto=11 prio=0 0.0.0.0/0.0.0.0/0->0.0.0.0/0 pref=0.0.0.0 gwy=10.200.1.254 dev=2(port1) tab=254 vf=0 scope=0type=1 proto=11 prio=10 0.0.0.0/0.0.0.0/0->0.0.0.0/0 pref=0.0.0.0 gwy=10.200.2.254 dev=3(port2) tab=254 vf=0 scope=253type=1 proto=2 prio=0 0.0.0.0/0.0.0.0/.->10.0.1.0/24 pref=10.0.1.254 gwy=0.0.0.0 dev=4(port3) # get router info routing-table all s*0.0.0.0/0 [10/0] via 10.200.1.254, portl [10/0] via 10.200.2.254, port2, [10/0] dO.0.1.0/24 is directly connected, port3 dO.200.1.0/24 is directly connected, portl d0.200.2.0/24 is directly connected, port2

Which outbound interface or interfaces will be used by this FortiGate to route web traffic from internal users to the Internet?

A. port!

B. port2.

C. Both portl and port2.

D. port3.

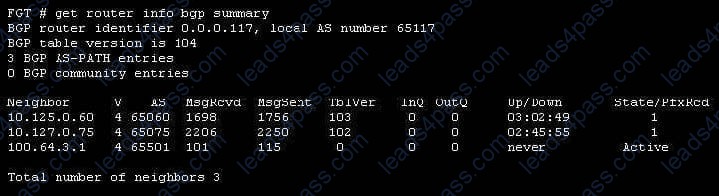

View the exhibit, which contains the output of a BGP debug command, and then answer the question below.

Which of the following statements about the exhibit are true? (Choose two.)

A. The local router's BGP state is Established with the 10.125.0.60 peer.

B. Since the counters were last reset; the 10.200.3.1 peer has never been down.

C. The local router has received a total of three BGP prefixes from all peers.

D. The local router has not established a TCP session with 100.64.3.1.
