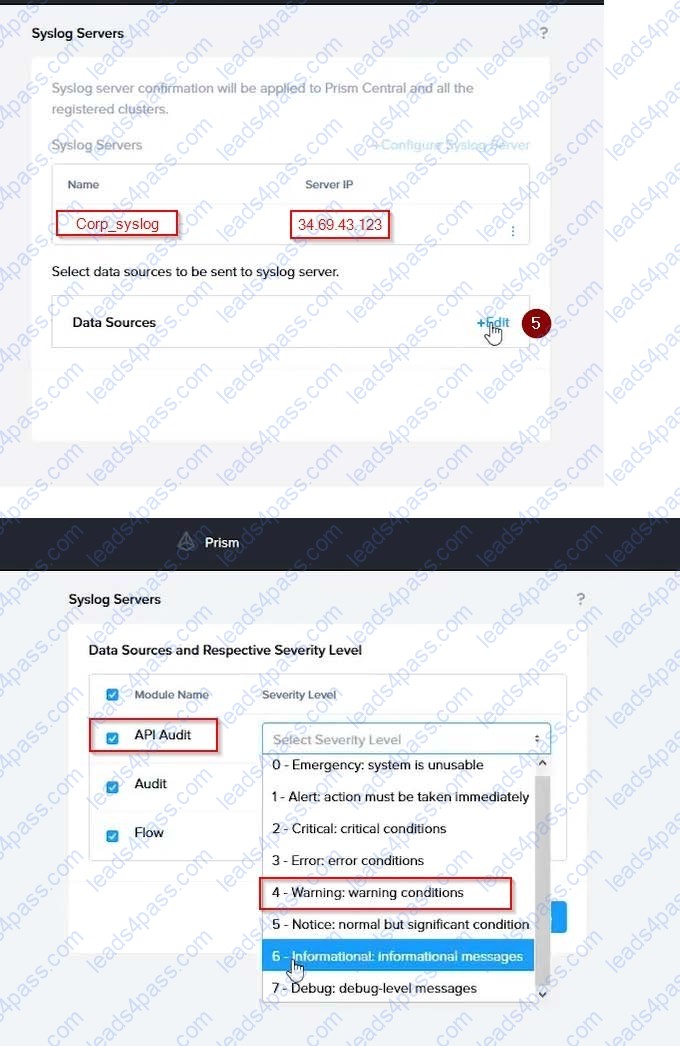

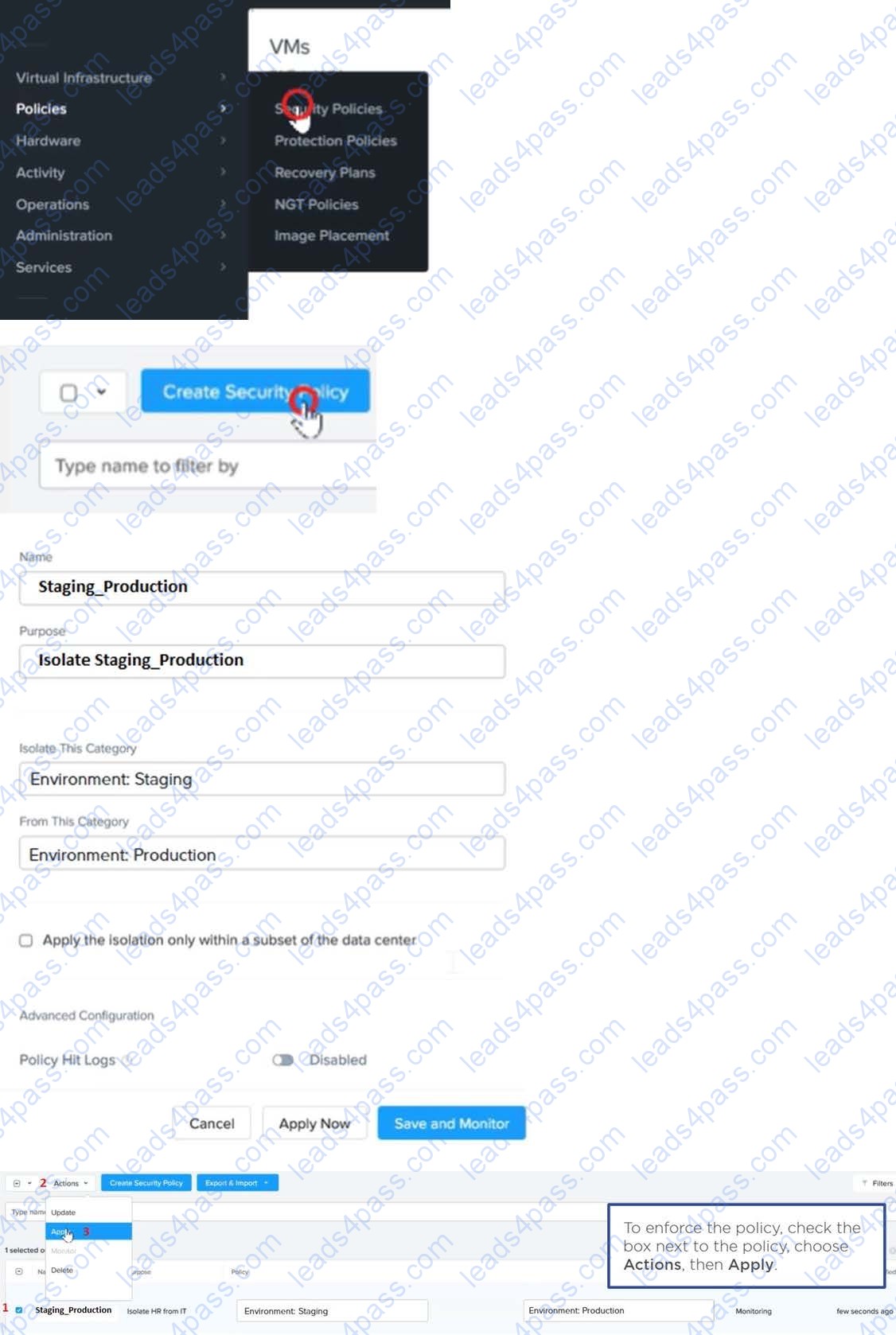

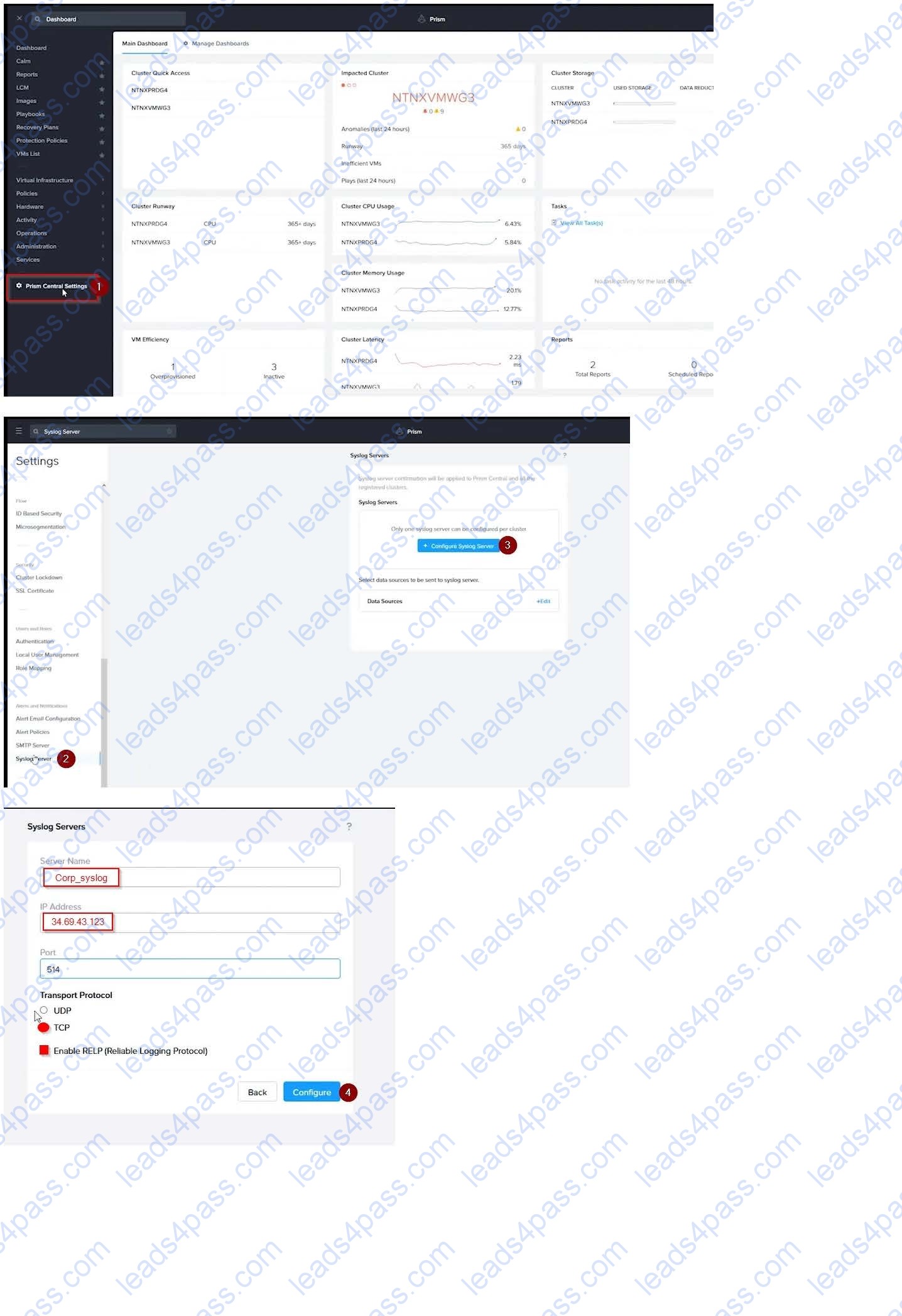

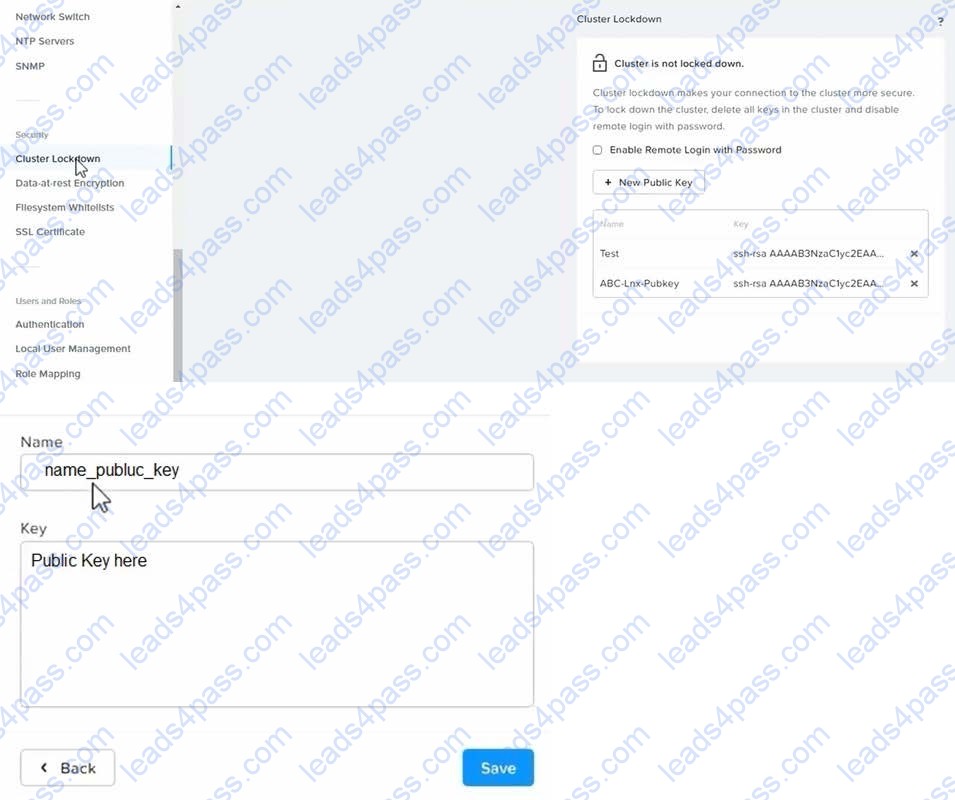

NCM-MCI-6.5 Online Practice Questions and Answers

Correct Answer: A

To identify the CVM with the issue, remove the file causing the storage bloat, and check the health again, you can follow these steps:

Log in to Prism Central and click on Entities on the left menu. Select Virtual Machines from the drop-down menu and find the NCC health check output file from the list. You can use the date and time information to locate the file. The file name

should be something like ncc-output-YYYY-MM-DD-HH-MM-SS.log. Open the file and look for the line that says FAIL: CVM System Partition /home usage at 93% (greater than threshold, 90%). Note down the IP address of the CVM that has

this issue. It should be something like X.X.X.X.

Log in to the CVM using SSH or console with the username and password provided. Run the command du -sh /home/* to see the disk usage of each file and directory under /home. Identify the file that is taking up most of the space. It could

be a log file, a backup file, or a temporary file. Make sure it is not a system file or a configuration file that is needed by the CVM.

Run the command rm -f /home/ to remove the file causing the storage bloat. Replace with the actual name of the file. Run the command ncc health_checks hardware_checks disk_checks disk_usage_check -cvm_list=X.X.X.X to check the health again by running the individual disk usage health check only on the problematic CVM. Replace X.X.X.X with the IP address of the CVM that you noted down earlier.

Verify that the output shows PASS: CVM System Partition /home usage at XX% (less than threshold, 90%). This means that the issue has been resolved.

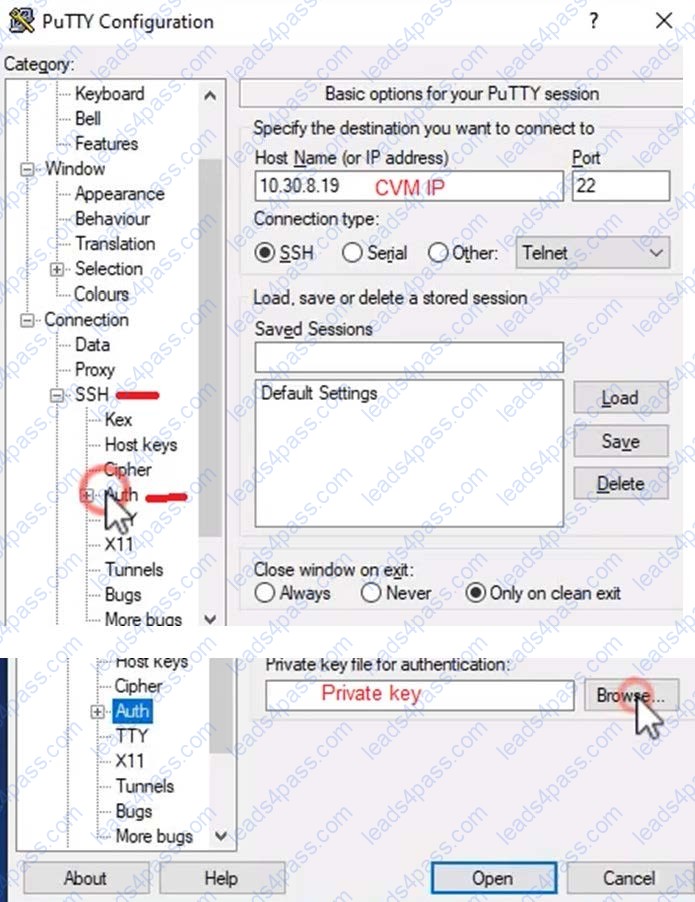

#access to CVM IP by Putty

allssh df -h #look for the path /dev/sdb3 and select the IP of the CVM ssh CVM_IP

ls

cd software_downloads

ls

cd nos

ls -l -h

rm files_name

df -h

ncc health_checks hardware_checks disk_checks disk_usage_check

Correct Answer: A

To create a report named Weekends that meets the requirements, you can follow these steps:

Log in to Prism Central and click on Entities on the left menu. Select Virtual Machines from the drop-down menu and click on Create Report. Enter Weekends as the report name and a description if required. Click Next. Under the Custom

Views section, select Data Table. Click Next. Under the Entity Type option, select Cluster. Click Next. Under the Custom Columns option, add the following variable: CPU Usage (%). Click Next. Under the Aggregation option for CPU Usage

(%), select Max. Click Next. Under the Filter option, select Current Cluster from the drop-down menu. Click Next. Click on Add to add this custom view to your report. Click Next. Under the Custom Views section, select Data Table again. Click

Next. Under the Entity Type option, select VM. Click Next. Under the Custom Columns option, add the following variables: Name, I/O Read Latency (ms), VM Ready Time (%). Click Next.

Under the Aggregation option for I/O Read Latency (ms) and VM Ready Time (%), select Max. Click Next.

Under the Filter option, enter ORA* in the Name field. This will include any future VM with the prefix ORA. Click Next.

Click on Add to add this custom view to your report. Click Next. Under the Report Settings option, select Weekly from the Schedule drop-down menu and choose Sunday as the day of week. Enter 12:00 AM as the time of day. Enter

[email protected] as the Email Recipient. Select CSV as the Report Output Format.

Click Next.

Review the report details and click Finish.

Correct Answer: A

One possible reason why the SQL03 VM was not powered back on after a host failure is that the cluster was configured with the default (best effort) VM high availability mode, which does not guarantee the availability of VMs in case of

insufficient resources on the remaining hosts. To resolve this issue, I suggest changing the VM high availability mode to guarantee (reserved segments), which reserves some memory on each host for failover of VMs from a failed host. This

way, the SQL03 VM will have a higher chance of being restarted on another host in case of a host failure. To change the VM high availability mode to guarantee (reserved segments), you can follow these steps:

Log in to Prism Central and select the cluster where the SQL VMs are running. Click on the gear icon on the top right corner and select Cluster Settings. Under Cluster Services, click on Virtual Machine High Availability. Select Guarantee

(Reserved Segments) from the drop-down menu and click Save. To configure the environment to ensure any single host failure affects a minimal number of SQL VMs, I suggest using anti-affinity rules, which prevent VMs that belong to the

same group from running on the same host. This way, if one host fails, only one SQL VM will be affected and the other SQL VMs will continue running on different hosts. To create an anti-affinity rule for the SQL VMs, you can follow these

steps:

Log in to Prism Central and click on Entities on the left menu. Select Virtual Machines from the drop-down menu and click on Create Group. Enter a name for the group, such as SQL Group, and click Next. Select the SQL VMs (SQL01,

SQL02, SQL03) from the list and click Next. Select Anti-Affinity from the drop-down menu and click Next.

Review the group details and click Finish.

I hope this helps. How else can I help?

https://portal.nutanix.com/page/documents/details?targetId=AHV-Admin-Guide-v6_5:ahv- affinity-policies-c.html

A screenshot of a computer

Description automatically generated with medium confidence

Correct Answer: A

First, you need to open the Prism Central CLI from the Windows Server 2019 workstation. You can do this by clicking on the Start menu and typing "Prism Central CLI". Then, you need to log in with the credentials provided to you. Second,

you need to run the two commands that I have already given you in Desktop\Files\Network\flow.txt. These commands are:

net.update_vpc_traffic_config virtual_switch=vs1 net.update_vpc_east_west_traffic_config permit_vpc_traffic=true

These commands will update the virtual switch that carries the VPC traffic to vs1, and update the VPC east-west traffic configuration to allow only VPC traffic. You can verify that these commands have been executed successfully by running

the command:

net.get_vpc_traffic_config

This command will show you the current settings of the virtual switch and the VPC east- west traffic configuration.

Third, you need to SSH directly to any AHV node (not a CVM) in the cluster and run the command:

ovs-vsctl show

This command will display an overview of the Open vSwitch configuration on the AHV node. You can copy and paste the output of this command to a new text file named Desktop\Files\Network\AHVswitch.txt.

You can use any SSH client such as PuTTY or Windows PowerShell to connect to the AHV node. You will need the IP address and the credentials of the AHV node, which you can find in Prism Element or Prism Central.

remove # from greens

On AHV execute:

sudo ovs-vsctl show

CVM access AHV access command

nutanix@NTNX-A-CVM:192.168.10.5:~$ ssh [email protected] "ovs-vsctl show" Open AHVswitch.txt and copy paste output

Correct Answer: A

To configure the VM to better leverage AHV Turbo, you can follow these steps:

Log in to Prism Element of cluster A using the credentials provided.

Go to VM > Table and select the VM named Turbo.

Click on Update and go to Hardware tab.

Increase the number of vCPUs to match the number of multiqueues that you want to enable. For example, if you want to enable 8 multiqueues, set the vCPUs to 8. This will improve the performance of multi-threaded workloads by allowing

them to use multiple processors.

Change the SCSI Controller type from SATA to VirtIO. This will enable the use of VirtIO drivers, which are required for AHV Turbo.

Click Save to apply the changes.

Power off the VM if it is running and mount the Nutanix VirtIO ISO image as a CD-ROM device. You can download the ISO image fromNutanix Portal. Power on the VM and install the latest Nutanix VirtIO drivers for Windows 10. You can

follow the instructions fromNutanix Support Portal. After installing the drivers, power off the VM and unmount the Nutanix VirtIO ISO image.

Power on the VM and log in to Windows 10.

Open a command prompt as administrator and run the following command to enable multiqueue for the VirtIO NIC:

ethtool -L eth0 combined 8

Replaceeth0with the name of your network interface and8with the number of multiqueues that you want to enable. You can useipconfig /allto find out your network interface name.

Restart the VM for the changes to take effect.

You have now configured the VM to better leverage AHV Turbo. You can run your stress test application again and observe the performance gains.

https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e000000LKPdCAO change vCPU to 2/4 ?

Change SATA Controller to SCSI:

acli vm.get Turbo

Output Example:

Turbo {

config {

agent_vm: False

allow_live_migrate: True

boot {

boot_device_order: "kCdrom"

boot_device_order: "kDisk"

boot_device_order: "kNetwork"

uefi_boot: False

}

cpu_passthrough: False

disable_branding: False

disk_list {

addr {

bus: "ide"

index: 0

}

cdrom: True

device_uuid: "994b7840-dc7b-463e-a9bb-1950d7138671" empty: True

}

disk_list {

addr {

bus: "sata"

index: 0

}

container_id: 4

container_uuid: "49b3e1a4-4201-4a3a-8abc-447c663a2a3e" device_uuid: "622550e4-fb91-49dd-8fc7-9e90e89a7b0e" naa_id: "naa.6506b8dcda1de6e9ce911de7d3a22111"

storage_vdisk_uuid: "7e98a626-4cb3-47df-a1e2-8627cf90eae6" vmdisk_size: 10737418240

vmdisk_uuid: "17e0413b-9326-4572-942f-68101f2bc716" }

flash_mode: False

hwclock_timezone: "UTC"

machine_type: "pc"

memory_mb: 2048

name: "Turbo"

nic_list {

connected: True

mac_addr: "50:6b:8d:b2:a5:e4"

network_name: "network"

network_type: "kNativeNetwork"

network_uuid: "86a0d7ca-acfd-48db-b15c-5d654ff39096" type: "kNormalNic"

uuid: "b9e3e127-966c-43f3-b33c-13608154c8bf"

vlan_mode: "kAccess"

}

num_cores_per_vcpu: 2

num_threads_per_core: 1

num_vcpus: 2

num_vnuma_nodes: 0

vga_console: True

vm_type: "kGuestVM"

}

is_rf1_vm: False

logical_timestamp: 2

state: "Off"

uuid: "9670901f-8c5b-4586-a699-41f0c9ab26c3"

}

acli vm.disk_create Turbo clone_from_vmdisk=17e0413b-9326-4572-942f-68101f2bc716 bus=scsi

remove the old disk

acli vm.disk_delete 17e0413b-9326-4572-942f-68101f2bc716 disk_addr=sata.0

Correct Answer: A

To configure a DR solution that meets the stated requirements, you can follow these steps:

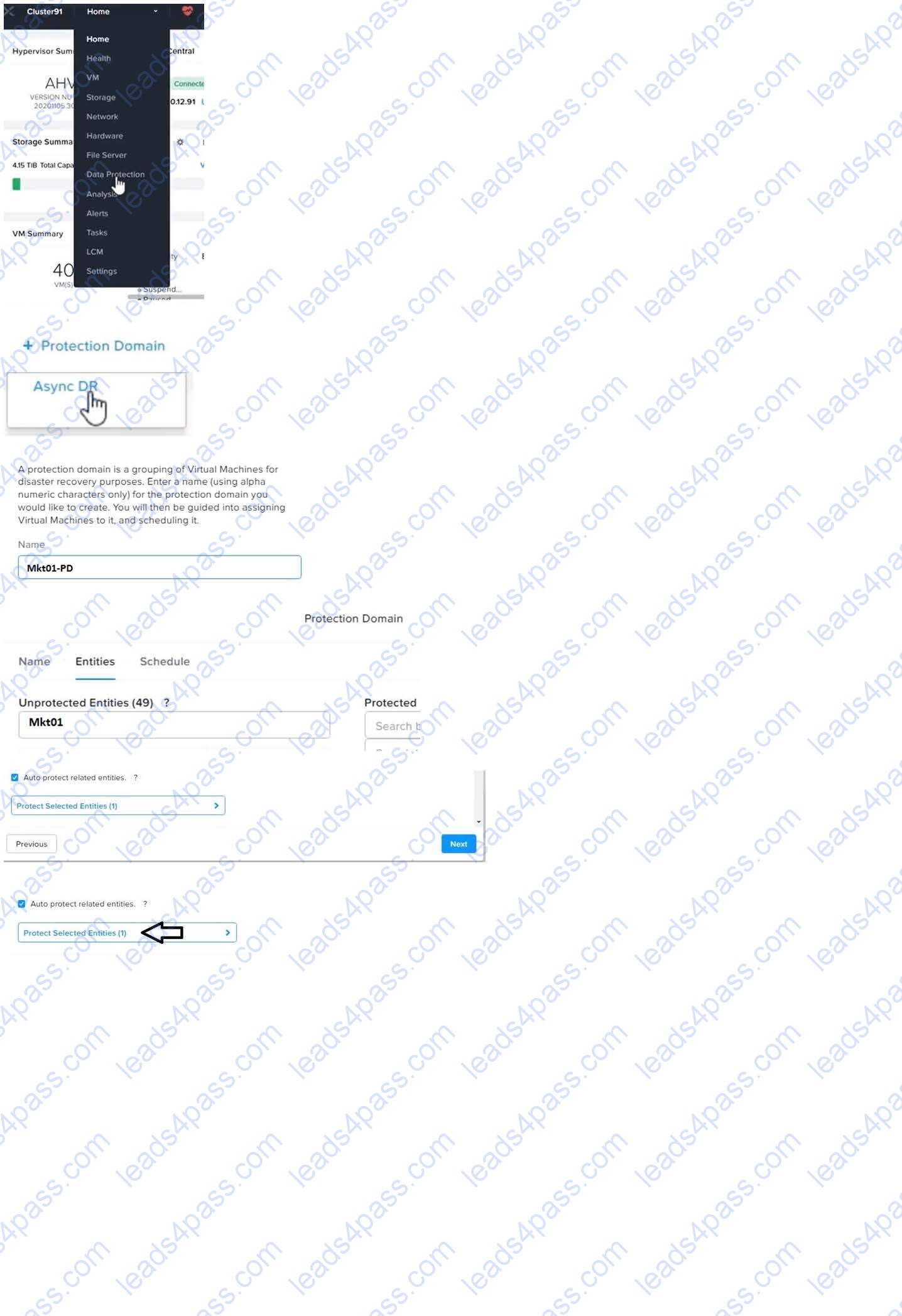

Log in to the Web Console of the source cluster where the VMs are running. Click on Protection Domains on the left menu and click on Create Protection Domain. Enter a name for the protection domain, such as PD_Mkt01, and a description

if required.

Click Next.

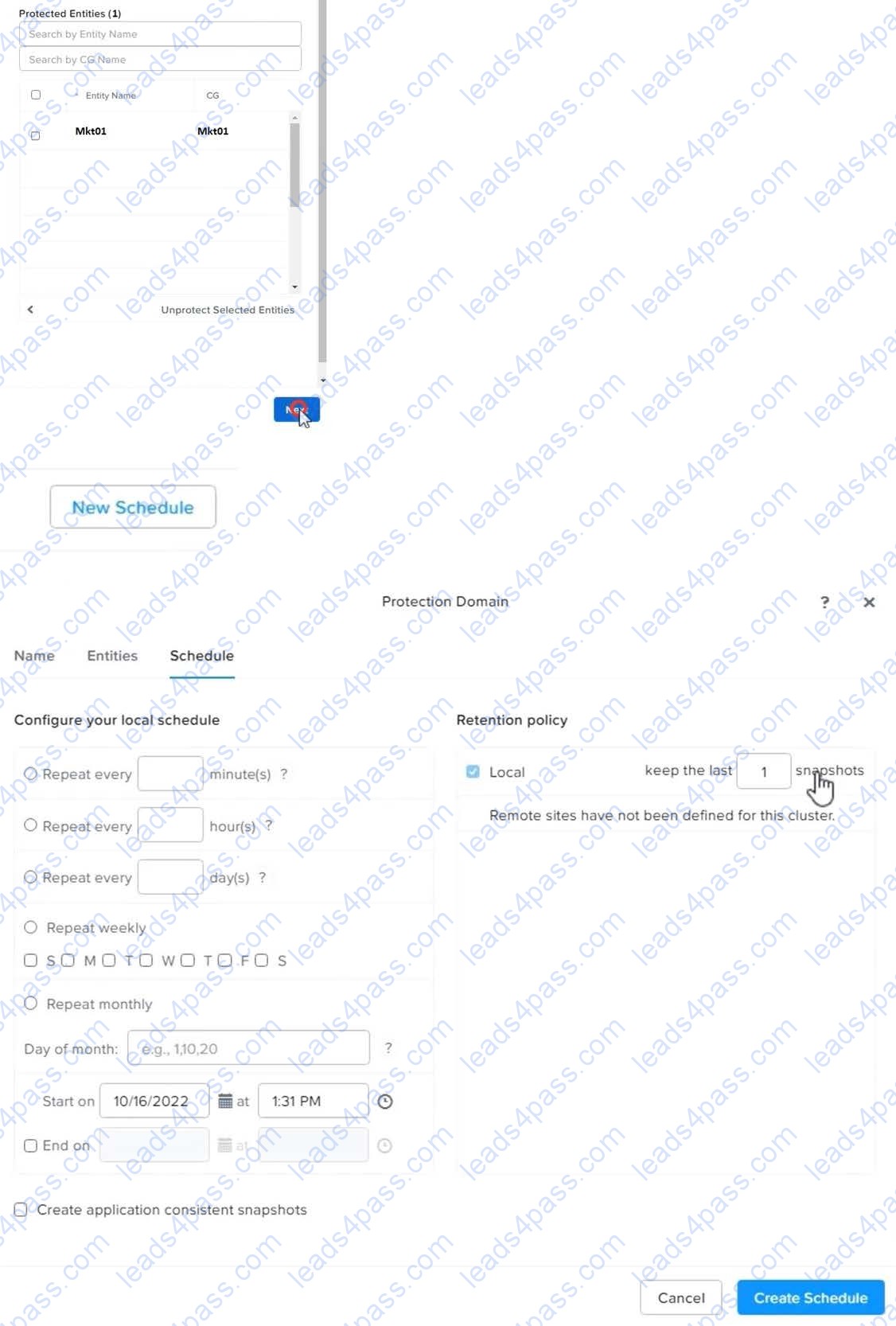

Select Mkt01 from the list of VMs and click Next. Select Schedule Based from the drop-down menu and enter 2 hours as the interval. Click Next.

Select Remote Site from the drop-down menu and choose the remote site where you want to replicate the VM. Click Next.

Enter 5 as the number of snapshots to retain on both local and remote sites. Click Next. Review the protection domain details and click Finish. Repeat the same steps for Fin01 and Dev01, using PD_Fin01 and PD_Dev01 as the protection

domain names, and adjusting the interval and retention values according to the requirements.

Correct Answer: A

To configure the cluster to meet the requirements for the new workload, you need to do the following steps: Create a new VLAN with ID 667 on the cluster. You can do this by logging in to Prism Element and going to Network Configuration > VLANs > Create VLAN. Enter 667 as the VLAN ID and a name for the VLAN, such as 667_VLAN. Create a new network segment with the network details provided. You can do this by logging in to Prism Central and going to Network > Network Segments > Create Network Segment. Enter a name for the network segment, such as 667_Network_Segment, and select 667_VLAN as the VLAN. Enter 192.168.0.0 as the Network Address and 255.255.255.0 as the Subnet Mask. Enter 192.168.0.1 as the Default Gateway and 34.82.231.220 as the DNS Server. Enter cyberdyne.net as the Domain Name. Create a new IP pool with the IP range provided. You can do this by logging in to Prism Central and going to Network > IP Pools > Create IP Pool. Enter a name for the IP pool, such as 667_IP_Pool, and select 667_Network_Segment as the Network Segment. Enter 192.168.9.100 as the Starting IP Address and 192.168.9.200 as the Ending IP Address. Configure the DHCP server with the IP address provided. You can do this by logging in to Prism Central and going to Network > DHCP Servers > Create DHCP Server. Enter a name for the DHCP server, such as 667_DHCP_Server, and select 667_Network_Segment as the Network Segment. Enter 192.168.0.2 as the IP Address and select 667_IP_Pool as the IP Pool.

Correct Answer: A

https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e000000LLEzCAO https://jsonformatter.curiousconcept.com/#

acli net.list(uuid network defult_net)

ncli cluster info(uuid cluster)

Put Call: https://Prism Central IP address : 9440/api/nutanix/v3vms Edit these lines to fix the API call, do not add new lines or copy lines. You can test using the Prism Element API explorer or PostMan Body:

{

{

"spec": {

"name": "Test_Deploy",

"resources": {

"power_state":"OFF",

"num_vcpus_per_socket": ,

"num_sockets": 1,

"memory_size_mib": 8192,

"disk_list": [

{

"disk_size_mib": 51200,

"device_properties": {

"device_type":"DISK"

}

},

{

"device_properties": {

"device_type":"CDROM"

}

}

],

"nic_list":[

{

"nic_type": "NORMAL_NIC",

"is_connected": true,

"ip_endpoint_list": [

{

"ip_type": "DHCP"

}

],

"subnet_reference": {

"kind": "subnet",

"name": "default_net",

"uuid": "00000000-0000-0000-0000-000000000000"

}

}

],

},

"cluster_reference": {

"kind": "cluster",

"name": "NTNXDemo",

"uuid": "00000000-0000-0000-0000-000000000000"

}

},

"api_version": "3.1.0",

"metadata": {

"kind": "vm"

}

}

https://www.nutanix.dev/2019/08/26/post-a-package-building-your-first-nutanix-rest-api- post-request/

Reference

Correct Answer: A

To configure the storage for the Citrix-based VDI, you can follow these steps:

Log in to Prism Central using the credentials provided. Go to Storage > Storage Pools and click on Create Storage Pool. Enter a name for the new storage pool, such as VDI_Storage_Pool, and select the disks to include in the pool. You can

choose any combination of SSDs and HDDs, but for optimal performance, you may prefer to use more SSDs than HDDs.

Click Save to create the storage pool.

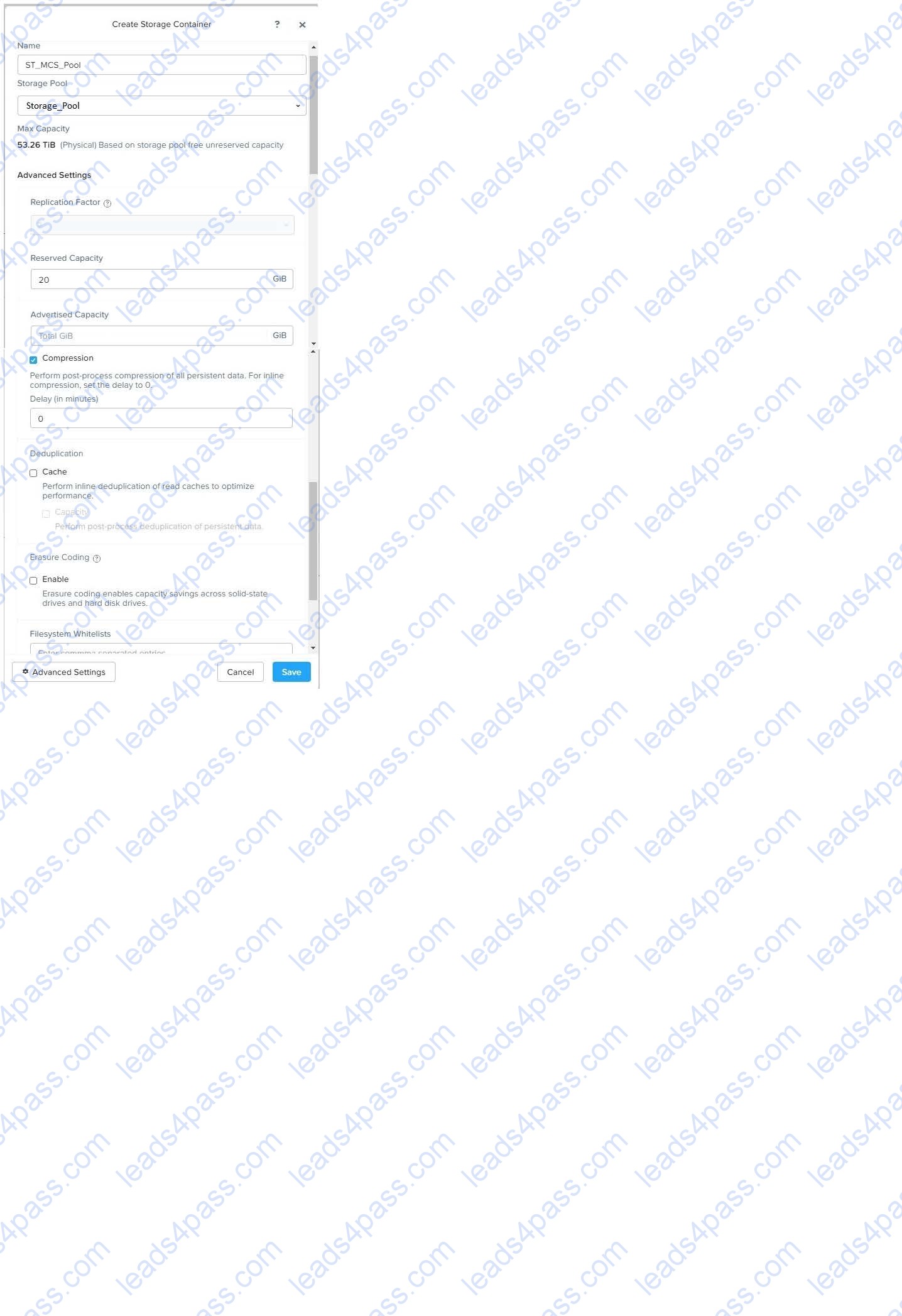

Go to Storage > Containers and click on Create Container. Enter a name for the new container for the non-persistent pool, such as MCS_Pool_Container, and select the storage pool that you just created, VDI_Storage_Pool, as the source.

Under Advanced Settings, enable Deduplication and Compression to reduce the storage footprint of the non-persistent desktops. You can also enable Erasure Coding if you have enough nodes in your cluster and want to save more space.

These settings will help you optimize the storage capacity for the non-persistent pool.

Click Save to create the container.

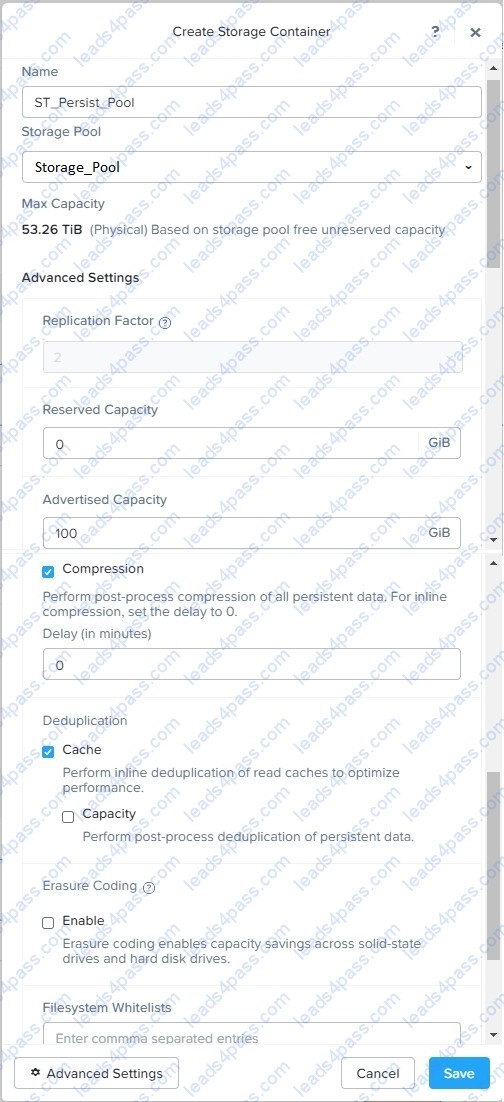

Go to Storage > Containers and click on Create Container again. Enter a name for the new container for the persistent pool, such as Persist_Pool_Container, and select the same storage pool, VDI_Storage_Pool, as the source.

Under Advanced Settings, enable Capacity Reservation and enter 20 GiB as the reserved capacity. This will guarantee that 20 GiB of space is always available for the persistent desktops. You can also enter 100 GiB as the advertised

capacity to limit the maximum space that this container can use. These settings will help you control the storage allocation for the persistent pool.

Click Save to create the container.

Go to Storage > Datastores and click on Create Datastore. Enter a name for the new datastore for the non-persistent pool, such as MCS_Pool_Datastore, and select NFS as the datastore type. Select the container that you just created,

MCS_Pool_Container, as the source.

Click Save to create the datastore.

Go to Storage > Datastores and click on Create Datastore again. Enter a name for the new datastore for the persistent pool, such as Persist_Pool_Datastore, and select NFS as the datastore type. Select the container that you just created,

Persist_Pool_Container, as the source.

Click Save to create the datastore.

The datastores will be automatically mounted on all nodes in the cluster. You can verify this by going to Storage > Datastores and clicking on each datastore. You should see all nodes listed under Hosts.

You can now use Citrix Studio to create your VDI pools using MCS or full clones on these datastores. For more information on how to use Citrix Studio with Nutanix Acropolis, seeCitrix Virtual Apps and Desktops on NutanixorNutanix

virtualization environments.

https://portal.nutanix.com/page/documents/solutions/details?targetId=BP-2079-Citrix- Virtual-Apps-and-Desktops:bp-nutanix-storage-configuration.html

Correct Answer: A

To restore the VM and ensure it is reachable on the network, you can follow these steps:

Log in to the Web Console of the cluster where the VM is running. Click on Virtual Machines on the left menu and find Cent_Down from the list. Click on the power icon to power off the VM.

Click on the snapshot icon next to the power icon to open the Snapshot Management window.

Select a snapshot from the list that was taken before the network stack was corrupted. You can use the date and time information to choose a suitable snapshot. Click on Restore VM and confirm the action in the dialog box. Wait for the

restore process to complete.

Click on the power icon again to power on the VM. Log in to the VM using SSH or console with the username and password provided. Run the command ping 172.31.0.1 to verify that the VM is reachable on the network. You should see a

reply from the destination IP address.

Go to VMS from the prism central gui

Select the VMand go to More -> Guest Shutdown

Go to Snapshots tab and revert to latest snapshot available power on vm and verify if ping is working
