JN0-662 Online Practice Questions and Answers

With which two elements is a VRF table populated? (Choose two.)

A. Routes received from remotely connected CE sites.

B. Routes received from directly connected CE sites.

C. Routes received from P routers with acceptable MP-BGP attributes.

D. Routes received from PE routers with acceptable MP-BGP attributes.

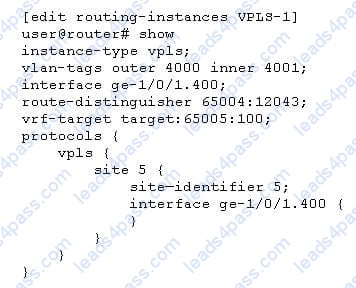

You are asked to deploy VPLS in your network as a new service for several customers, and you must identify the configuration and provisioning requirements for your customers. Which two statements are correct in this scenario? (Choose two.)

A. CE interfaces facing the service prowler must be Ethernet interfaces.

B. VLAN IDs defined on CE interfaces must be the same on both ends unless otherwise negotiated.

C. CE interfaces facing the service provider must be Layer 3 interfaces.

D. PE interfaces facing the core must have VPLS encapsulation enabled.

Click the Exhibit button.

Referring to the exhibit, in which order will ICMP traffic be processed by the configured filters and policers for interface ge-1/0/0?

A. input filter, input policer, output policer, output filter

B. input policer, input fitter, output policer, output filter

C. input filter, input policer, output filter, output policer

D. input policer, input filter, output filter, output policer

Click the Exhibit button.

What is accomplished by the default-gateway parameter in the configuration shown in the exhibit?

A. The device creates a default route and distributes the IP address to all peers.

B. The device sends the MAC and IP addresses of the IRB interface to its peers.

C. The device sends the IP address of the IRB interface without the MAC address.

D. The device creates a default route and distributes its MAC and IP address to all peers.

You are asked to configure PIM-SM in your network. Your implementation must allow for load sharing between redundant RPs and, should an RP failure occur, the RP failover time should be minimized.

Which two configuration tasks are required in this scenario? (Choose two.)

A. Configure MSDP peering sessions between the routers designated as RPs.

B. Configure the shared anycast address on the RPs as the primary address on the loopback interface.

C. On the routers designated as RPs, configure the shared anycast address on the loopback interface.

D. Configure at least two static RPs and bundle them in an RP redundancy group under [edit protocols pim].

Click the Exhibit button.

Site HQ connects to Site A through a provider using BGP. The BGP route for Site A destinations is redistributed info OSPF within site HQ. You provision a backup link over a dedicated leased line that connects to Site A, which should only be used when Site A is not reachable through the provider.

When the backup circuit is provisioned, traffic destined to Site A transits the backup link instead of the provider link.

Referring to the exhibit, how do you solve this problem?

A. Configure the backup link to be in passive mode.

B. Configure the backup link to be part of Area 0.

C. Increase the metric on the backup link to Site A.

D. Change the route preference on OSPF external routes.

Click the Exhibit button.

Referring to the ABR configuration shown in the exhibit, which two statements are correct? (Choose two.)

A. The ABR advertises a default route to the NSSA with a metric of 10.

B. To reach the ABR, routers within the NSSA add 10 to their calculated path cost.

C. The ABR advertises NSSA routes to the backbone area with a metric of 10.

D. To reach the ABR, routers within the NSSA use the metric 10 as their path cost.

Click the Exhibit button.

Which two statements are true regarding the output shown in the exhibit? (Choose two.)

A. Both ESIs are generated from the router ID.

B. Both ESIs use the same VNI.

C. The ESI 05:00:00:fe:4d:00:00:56:0e:00 is an auto-generated ESI.

D. The ESI 00:24:24:24:24:24:24:24:24:24 is an auto-generated ESI.

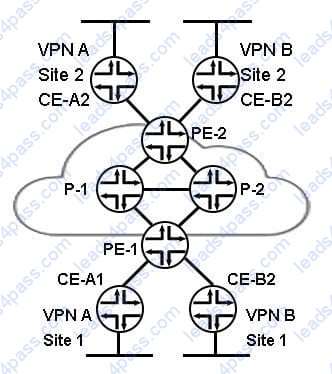

Click the Exhibit button.

Referring to the exhibit, which two statements are true? (Choose two.)

A. A BGP full mesh is only required between PE-1 and PE-2.

B. A BGP full mesh is required between P1, P2, PE-1, and PE-2.

C. MPLS must only be enabled on PE-1 and PE-2.

D. MPLS must be enabled on P1, P2, PE-1, and PE-2.

Click the Exhibit button.

Referring to the topology shown in the exhibit, where will the attached bit be set?

A. R4's level 1 database

B. R4's level 2 database

C. R3's level 1 database

D. R3's level 2 database
