HP2-Z31 Online Practice Questions and Answers

Correct Answer: D

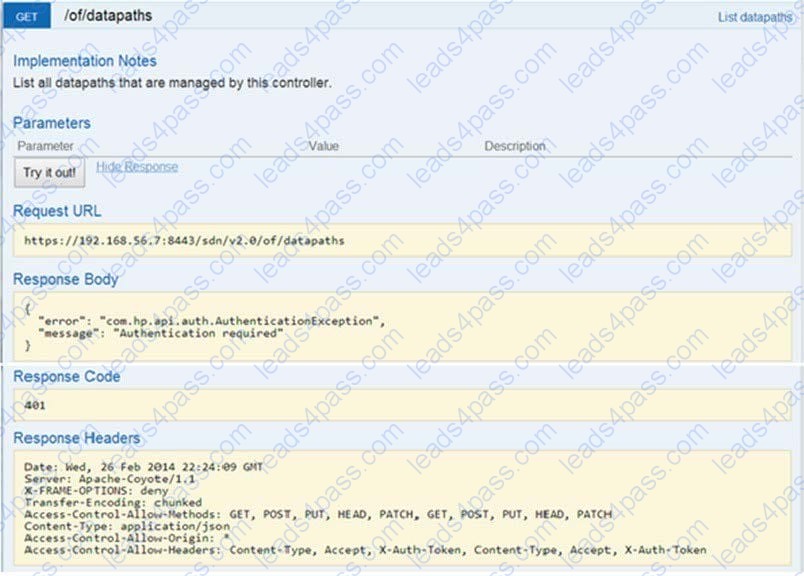

The SDN controller uses Openstack Keystone as an identity management for managing users, generating tokens, as well as token validation.

Reference: HP VAN SDN Controller Administrator Guide

Correct Answer: C

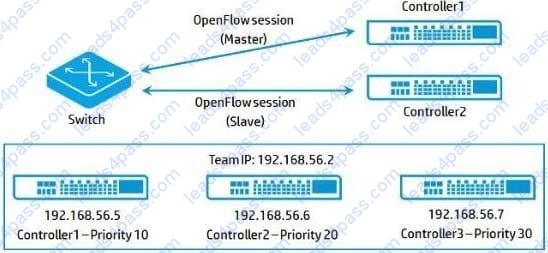

The controller with the highest priority.

Once a team is configured, the configuration and monitoring of team members and their associated OpenFlow switches is performed by the team manager. If the team manager goes down, the controller with the next highest priority in the team configuration becomes the team manager.

Note: Team Management Each controller belonging to a team is a team member. To centralize team management and control, one controller is designated as the team manager. Teaming is configured on one controller and is automatically

propagated to the other controllers in the team, regardless of which controller becomes the team manager.

Reference: HP VAN SDN Controller Administrator Guide

Correct Answer: A

Note:

*

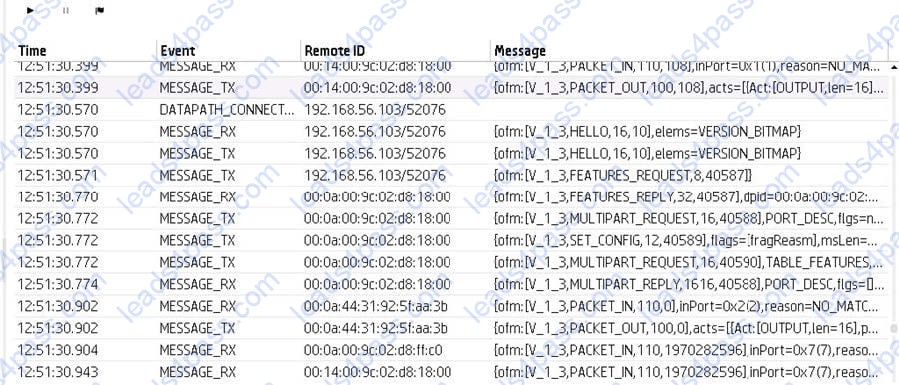

The PacketIn message is a way for the switch to send a captured packet to the controller. There are two reasons why this might happen; there could be an explicit action as a result of a match asking for this behavior, or from a miss in the match tables, or a ttl error.

*

Flowchart detailing packet flow through an OpenFlow switch.

Reference: OpenFlow Switch Specification Version 1.3.1

Correct Answer: ACE

A, B, C IMC VAN SDN Manager will feature full-fault, configuration, accounting, performance and security management for HP enabled SDN domains.. · Enable deployment, monitoring and management of HP OpenFlow enabled switches

*

Visualize traffic flow and performance monitoring in HP SDN Domains

*

Backup and restore configurations and software of HP SDN Controllers · Provide graphical OpenFlow troubleshooting with path analysis

Reference: HP IMC Virtual Application Networks Modules

Correct Answer: CD

You can set general policies for all the hosts in the network to manage and mitigate malicious traffic and host name requests. General policies enable the application to detect changes in network traffic patterns. The general policies prevent the host from acting like a botnet and being controlled by external malicious computers.

When network traffic from a host exceeds the policy limits, you can configure application to perform one of the following actions:

Block

Block and notify

Quarantine

Quarantine and Notify

Note: HIPS Short for host-based intrusion prevention system, HIPS is an IPS or intrusion prevention system designed for security over host-based systems where intrusions and infections are dealt with at the individual workstation level to provide a more effective level of security. Reference: HP Network Protector SDN Application Administrator Guide

Correct Answer: A

OpenFlow instance mode

OpenFlow can work either in active or passive mode.

Passive mode

There is one-way communication from the OpenFlow controller to the switch. Packets that do not match

any flow in the flow table on the switch are not sent to the controller. Such packets of new flows are

handled normally by the switch (that is using legacy forwarding mechanisms).

Active mode

New packets of a flow that the switch is not aware of are sent to the OpenFlow controller.

Reference: HP Switch Software OpenFlow Administrator's Guide K/KA/WB 15.14

Correct Answer: C

* Northbound API Relative to figure 1 below, the Northbound API is the API that enables communications between the control layer and the application layer (external business applications. Southbound API

Relative to Figure 1 below, the Southbound API is the API that enables communications between the control layer and the infrastructure layer (OpenFlow).

Figure 1. ONF's SDN architecture

* Putting the region configurations in place in a controller team ensures seamless failover and failback among the configured controllers for the specified network devices in a region. That is, when a master controller experiences a fault, the Role Orchestration Service ensures that a slave controller immediately assumes the master role over the group of network devices to which the failed controller was in the master role.

Reference: Technical white paper, Mock RFI for Enterprise SDN Solutions Reference: HP VAN SDN Controller Administrator Guide

Correct Answer: B

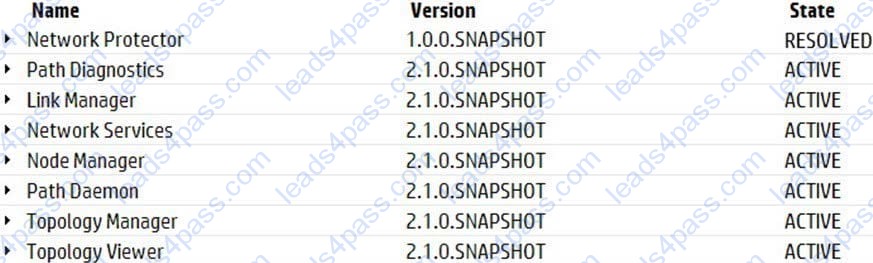

Note: TopologyViewer Creates and updates a network graph for visualizing the network the controller discovers. The Topology Viewer uses the services of the Topology Manager and Link Manager.

Correct Answer: A

LLDP is used to discover direct links between switches and BDDP is used to discover the switches in the same broadcast domain.

Note: Using a link-discovery module, the controller generates both LLDP and broadcast packets (referred to as BDDPs) and sends them to all neighboring switches on a regular basis.

Reference: OpenFlow Controller

Correct Answer: C

Unified Communications and Collaboration (UCandC) SDN Application--This application aims to improve the user experience of products such as Microsoft Lync within campus networks. It automates the deployment of quality-of-service policies and dynamically adjusts network priorities to securely support voice, video, and collaboration traffic, even in an environment integrating soft phones and BYOD user endpoints.

Reference: HP Virtual Application Networks SDN Controller
