HP2-Z30 Online Practice Questions and Answers

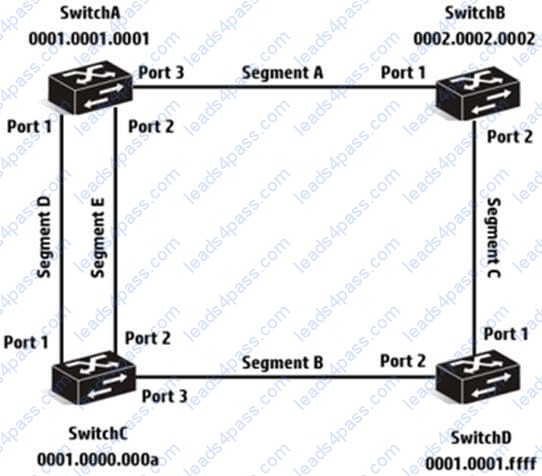

Refer to the network exhibit.

Assume the network shown in the exhibit has implemented RSTP Based on the topology, which port is a root port?

A. SwrtchAport2

B. SwitchD port 1

C. SwitchC port 2

D. SwitchB port 1

A network administrator has created and applied a configuration to an HP Provision switch. The network administrator then copied the active configuration to a TFTP server. Upon examining the configuration file on the TFTP server, the network administrator noticed that the operator and manager passwords were not in the saved configuration file.

Which command must the network administrator execute to accomplish this task?

A. include-credentials

B. include-passwords

C. save-credentials

D. backup-accounts

When performing auto discovery with Intelligent Management Center (IMC), which two components should be defined in order to fully manage the discovered networking devices?

A. SNMP and syslog

B. telnet and SSH

C. SSH and TFTP

D. SNMP and telnet

Which statement is true about spanning tree and HP Comware and HP Provision switches?

A. A Provision switch requires the active region-configuration command to activate changes.

B. A Provision switch uses non-standard port costs in spanning tree calculations.

C. A Comware switch automatically auto-senses edge ports.

D. A Comware switch uses non-standard port costs in spanning tree calculations.

Which statement is true about using the RADIUS protocol for AAA functions'?

A. Only passwords are encrypted in the RADIUS payload.

B. Digital certificates are used to authenticate the networking devices and AAA server.

C. AAA accounting records can be saved using RADIUS or syslog.

D. RADIUS uses TCP as a transport.

Refer to the network and ARP table exhibit:

The user on the left side of the exhibit wants to build a connection to the server on the right. Assume that SwitchA and SwitchB are HP Comware switches and SwitchB is a Layer 3 switch. For which IP address does the user generate an ARP?

A. The user generates an ARP for the MAC address that corresponds to 10.1.11.11

B. The user generates an ARP for the MAC address that corresponds to 10.1.11.1.

C. The user generates an ARP for the MAC address that corresponds to 10.1.12.1.

D. The user generates an ARP for the MAC address that corresponds to 10.112.2.

Which open-standard protocol allows a network administrator to view the running operating system version and IP address of a neighboring device?

A. STP

B. LLDP

C. ARP

D. CDP

The external server shown in the exhibit requires redundancy that uses link aggregation with LACP. Whichsolution meets this criteria?

A. Comware switches that use distributed trunking or ProVision switches that use meshed stacking

B. Comware switches that use IRF or ProVision switches that use distributed trunking

C. Comware or ProVision switches that use distributed trunking

D. Comware switches that use IRF or ProVision switches that use meshed stacking

A network administrator has two distribution layer switches and four access layer switches. The network administrator is constantly resolving Spanning Tree problems and is looking for an alternative solution that provides redundancy and no Spanning Tree.

A. ProVision switches with routing

B. ProVision switches with aggregation

C. Comware switches with auto-links

D. Comware switches with distributed trunking

A network administrator has an HP Comware switch that is configured with OSPF. The network administrator views the routing table and sees that a default route was learned from an OSPF neighbor (10.1.1.1). However, the network administrator wants to override this action and use a different neighbor (10.1.1 2) for the default route.

The network administrator configures this command:

[Comware] ip route-static 0.0.0.0 0 10.1.1.2

After configuring the command, the network administrator examines the routing table and notices that the original neighbor's default route is still in the routing table, but the static route is missing.

What is the cause of this problem?

A. OSPF routes have a lower precedence value

B. The ip default-gateway command must be used when creating a default route

C. Only one routing protocol can be operational on a Comware device

D. The static route has a syntax mistake
