HP0-Y52 Online Practice Questions and Answers

A network administrator configures OSPF in an HP ProVision based network. The administrator is concerned that a rogue device might connect to an access layer switch and introduce OSPF routes to the company's routing topology.

The access VLANs do not contain additional routers.

Which configuration should the administrator apply for these access VLANs to prevent them from forming an adjacency with rogue devices?

A. router ospfno vlan neighbor-adjacency

B. route spfip silent-vlan

C. router ospf passive-vlan

D. vlan ip ospf passive

A company requires switches to use Multiple Spanning Tree Protocol (MSTP) instead of Rapid Spanning Tree Protocol (RSTP), so that the switches can forward traffic on more than one switch-to-switch link. How does the administrator set up the solution to meet this requirement?

A. Configure every switch with a unique bridge priority in the IST, which is also called spanning tree instance 0.

B. Ensure that switches use the 802.3t standard costs instead of the legacy costs.

C. Set the same spanning tree cost on all redundant links on a switch.

D. M different VLANs to different instances, and make a different switch root bridge in each instance.

A network administrator establishes an aggregated link between an HP Comware and ProVision switch. VLAN 1 is untagged and VLANs 2 and 3 are tagged. The administrator configures these commands on the Comware switch:

The administrator configures theses commands on the ProVision switch:

Some of the links in the aggregated link become blocked.

Which Comware configuration should the administrator apply to the Comware switch to resolve this issue?

A. interface bridge-aggregation 1link-aggregation mode dynamic

B. interface bridge-aggregation 1link-aggregation type lacp dynamic

C. interface bridge-aggregation 1link-aggregation mode static

D. interface bridge-aggregation 1link-mode type lacp

A company has a network comprised of HP Comware and ProVision switches. A network administrator purchases HP Intelligent Management Center (IMC) to manage the switches in this network. Which step must the administrator perform on the Comware switches but not on the ProVision switches?

A. Configure SNMP traps.

B. Configure VTY interface authentication.

C. Define SNMPv2 community strings or SNMPv3 groups and users.

D. Configure telnet or SSH.

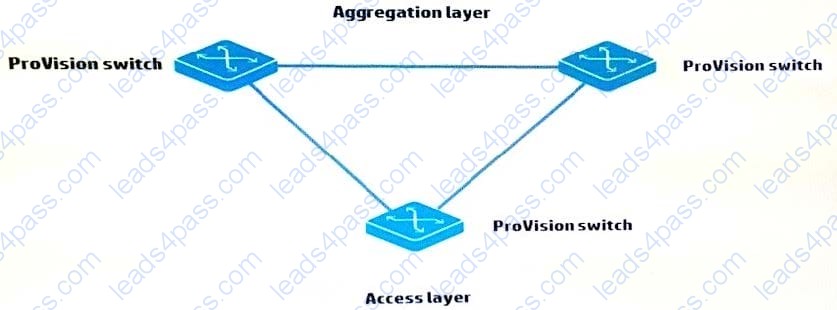

Refer to the exhibit.

The switches in the exhibit are all HP ProVision switches that run Multiple Spanning Tree Protocol (MSTP).

The network administrator wants all of the switch-to-switch links shown in the exhibit to be available for forwarding routed traffic. What should the administrator do to accomplish this?

A. Configure the switch-to-switch ports as MSTP auto-edge ports.

B. Configure link-keepalive on the switch-to-switch ports.

C. Configure BPDU filters on the switch-to-switch ports.

D. Configure links on a switch as a standard link aggregation.

Which HP software platform provides centralized network management, monitoring, and configuration of wired and wireless network infrastructure devices, as well as traffic monitoring, user management, and other capabilities?

A. HP IntelligentManagement Center (IMC)

B. HP Intelligent Resilient Framework (IRF)

C. HP Virtual Cloud Networking (VCN)

D. HP Virtual Connect FlexFabric

Refer to the exhibit.

A network administrator is upgrading the operating system on an HP Comware switch. When copying the new image from a TFTP server to the flash of the switch, the process fails because there is not enough flash to store the new operating system. The new operating system is 3.2MB in size. The administrator then executes the commands shown in the exhibit above.

Which action should the administrator perform to solve this problem?

A. Execute the reset recycle-bin command, and perform the TFTP transfer again.

B. Execute the clear flash command, and perform the TFTP transfer again.

C. Reformat flash, and perform the TFTP transfer again.

D. Execute the delete old.app command, and perform the TFTP transfer again.

A network administrator deletes old files in the flash file system of an HP Comware switch. The administrator then notices that the amount of free space available has not changed. Which command must the administrator execute to free up the space from deleted files?

A. reset recycle-bin

B. recycle-bin cleanup

C. cleanup recycle-bin

D. recycle-bin empty

A server connects to a port on an HP Comware switch. The network administrator wants to ensure that:

Which statement describes how the administrator can accomplish this?

A. The administrator must manually configure the port as an STP edge port.

B. The administrator can lower the port's root path cost to zero.

C. The administrator can accept the default behavior of auto-edge.

D. The administrator can configure the port as an MSTP master port.

A network administrator wants to establish an LACP link aggregation between an HP Comware switch and an HP ProVision switch. Which settings should the administrator configure?

A. The link aggregation mode should be set to static on the Comware bridge interface, and the ProVision trunk should be set to lacp.

B. The link aggregation mode should be set to dynamic on the Comware bridge interface, and the ProVision trunk should be set to trunk.

C. The link aggregation mode should be set to static on the Comware bridge interface, and the ProVision trunk should be set to trunk.

D. The link aggregation mode should be set to dynamic on the Comware bridge interface, and the ProVision trunk should be set to lacp.
