600-212 Online Practice Questions and Answers

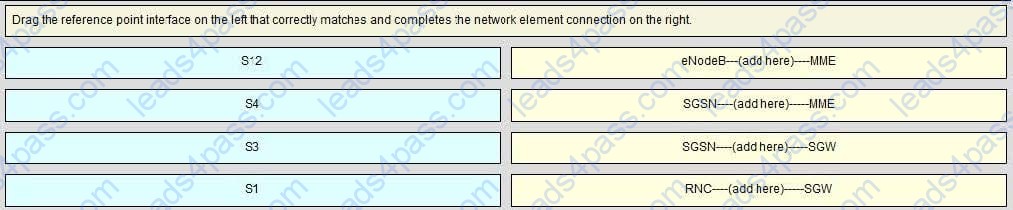

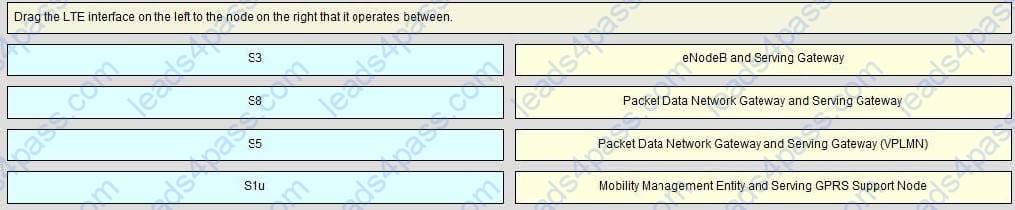

Select and Place:

Which option describes the flow of the S6a configuration on the Cisco ASR 5000 system?

A. MME-service, hss-peer-service, diameter endpoint, peer configuration

B. MME-service, diameter endpoint, hss-peer-service, peer configuration

C. MME-service, diameter endpoint, S6a-service, peer configuration

D. s6a-service, hss-peer-service, diameter endpoint, peer configuration

Which service does the S11 interface configuration correspond to on the Cisco ASR 5000 system?

A. egtp-service

B. sgtp-service

C. egtp-sv-service

D. gtpu-service

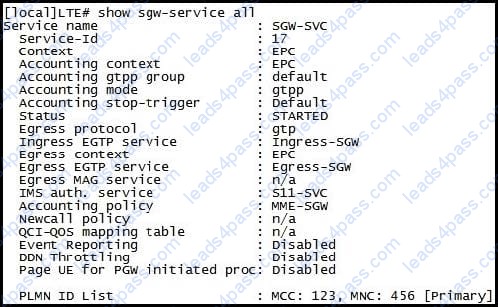

Exhibit:

Refer to the exhibit. Which interface is associated to reference point between the MME and the SGW?

A. EPC

B. Ingress-SGW

C. Egress-SGW

D. MME-SVC

E. S11-SVC

A subscriber is moving from LTE to GERAN/UTRAN and the SGSN is Release 7 3GPP. Which two statements about this situation are true? (Choose two.)

A. The SGW has a GTPv2 tunnel towards SGSN

B. The PGW has a GTPv2 tunnel towards SGSN

C. The PGW has a GTPv1 tunnel on the S8 interface toward the SGW.

D. The PGW has a GTPv2 tunnel on the S8 interface toward the SGW.

Which two options are two functions of a proxy CSCF? (Choose two.)

A. a SIP registrar that is responsible for session management

B. an entity in IMS that connects with the ENUM server for the number portability function

C. a SIP proxy node that acts as a signaling entry point into IMS

D. an entity in IMS that works on both signaling and bearer domain

E. an entity in IMS that connects with PCRF via the Rx interface

F. an entity in IMS that interacts with application servers

Which option describes what happens if a Voice over LTE IMS client attaches to an LTE EPC?

A. A default bearer is established in IMS APN.

B. A dedicated bearer is established in IMS APN.

C. A default bearer and a dedicated bearer are established in IMS APN.

D. No EPC bearer is established in IMS APN at this stage.

Which types can be classified as bulk stats on the Cisco ASR 5000?

A. Counter, Gauge, Information

B. Gauge, Counter, Iterative

C. Circular, Gauge, Counter

D. Watermark, Counter, Gauge

Which option describes SNMP inform requests?

A. notifications sent to and acknowledged by an SNMP agent

B. notifications sent to and acknowledged by an SNMP management station

C. notifications sent to but not acknowledged by an SNMP agent

D. notifications sent to but not acknowledged by an SNMP management station

Which capability does trace logging on the Cisco ASR 5000 enable the operator to do?

A. enables debug-level temporary logging filters based on call ID, IP address, MSID, or username

B. enables logging for all management messages based on call ID, IP address, MSID, or username

C. enables syslog facility logging for debug-level messages related to call management messaging

D. enables informational-level syslog facility logging for call management messaging
