300-625 Online Practice Questions and Answers

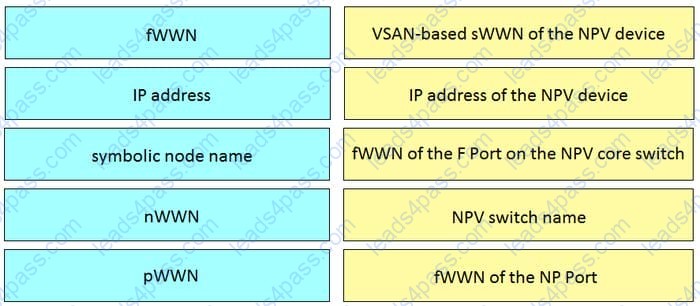

DRAG DROP

Drag and drop the items from the left onto the correct descriptions on the right. Not all items are used.

Select and Place:

Which two components are required for successful MDS USB POAP (Choose two.)

A. NTFS formatted USB drive

B. USB drive in port 1

C. script named poap_script pl

D. ENTERPRISE_PKG license

E. system and kickstart images

A Cisco MDS Series Switch with the POAP feature boots and does not find the startup configuration. Which location is checked first when the switch enters POAP mode?

A. USB device that contains the software image files and the switch configuration file

B. DHCP server to bootstrap the interface IP address, gateway, DNS server, and TFTP IP addresses

C. TFTP server where the necessary configuration files are downloaded

D. HTTP server where the URL is used to download the software image

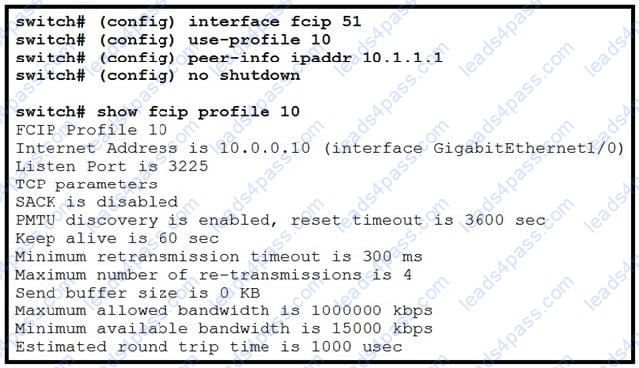

Refer to the exhibit.

Which configuration change improves the ability of the link to recover from frame loss?

A. Increase the reset timeout.

B. Enable selective acknowledgment.

C. Increase the send buffer size to 15000 KB.

D. Disable PMTU discovery.

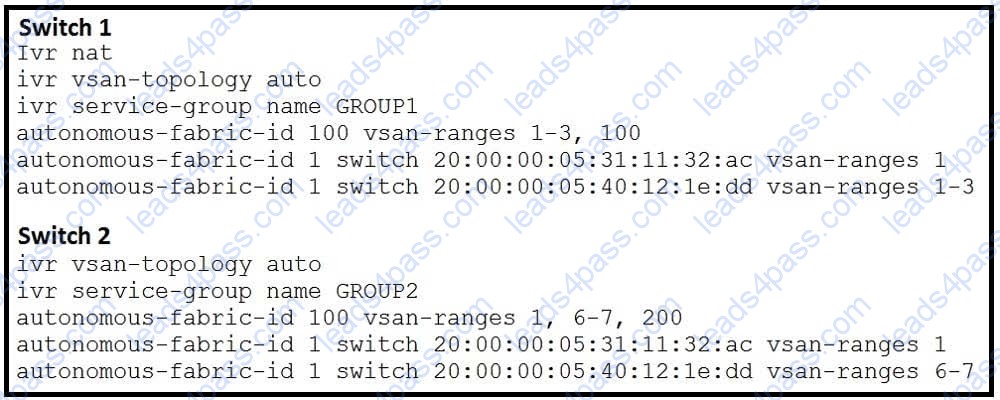

Refer to the exhibit.

What is the result of merging the fabric?

A. The merged fabric IVR VSAN topology is set to activate.

B. The merged fabric has NAT enabled.

C. The merge is invalid.

D. The merged fabric contains only service group Group1.

Which two protocols are used to implement SAN telemetry on Cisco MDS switches? (Choose two.)

A. RPC transport

B. GPB transport

C. gRPC transport

D. gRPC encoding

E. GPB encoding

A storage engineer is troubleshooting a Cisco MDS switch upgrade issue. What prevents the completion of a non-disruptive upgrade?

A. The Fibre Channel host initiator is connected.

B. The Fibre Channel storage target is connected.

C. The Cisco Fabric Services operation in progress.

D. The Fibre Channel and FCoE storage targets are connected.

A domain ID conflict is detected on a switch. Which action resolves the issue in the shortest possible time after the preferred domain ID is changed to a static domain ID?

A. Issue an fcdomain disruptive restart.

B. Issue an fcdomain nondisruptive restart.

C. Enter the commands for a VSAN suspend / no-suspend.

D. Enter the commands to complete a domain manager fast restart.

A storage administrator manually configures a storage switch to use a new static domain ID. After issuing an fcdomain restart vsan 1 command, the administrator sees that the switch is still using the existing domain ID. What is the reason why the configuration is not working?

A. Static domain IDs apply only after a switch is rebooted.

B. The disruptive keyword was not used on the command.

C. Build fabric notifications were not sent to the other switches.

D. Domain manager fast restart is not enabled on the switch.

A storage network engineer is upgrading a Cisco MDS Director with dual supervisor modules. The install command is executed on the standby supervisor module but fails. Which action would have prevented this failure?

A. All FCoE interfaces configured on the MDS must be shut down before starting the upgrade.

B. The upgrade must be done on the active supervisor module only.

C. Cisco Fabric Services must be disabled before starting the upgrade.

D. Fabric Controller Service must be stopped before starting the upgrade.
