300-615 Online Practice Questions and Answers

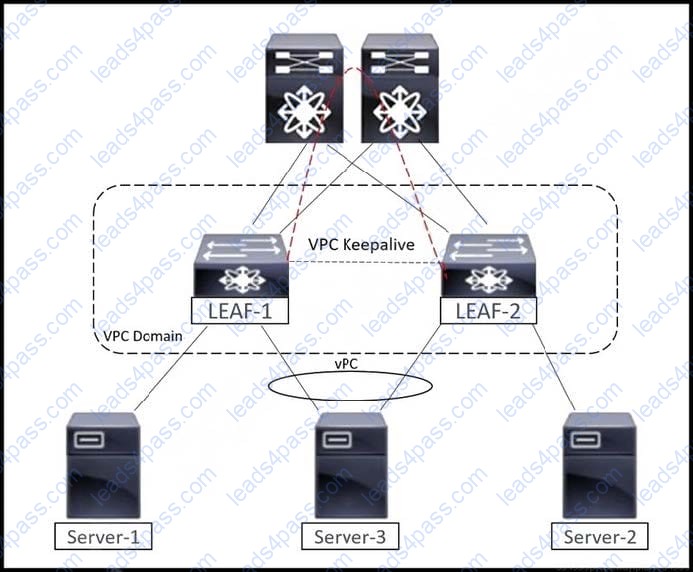

Refer to the exhibit.

vPC between switch1 and switch2 is not working. Which two actions are needed to fix the problem? (Choose two.)

A. Match vPC domain ID between the two devices.

B. Configure IP address on the interface.

C. Activate VLANs on the vPC.

D. Configure vPC peer link and vPC peer keepalive correctly.

E. Configure one of the switches as primary for the vPC.

A server fails to boot from the operating system after a RAID1 cluster migration. The RAID remains in an inactive state during and after a service profile association. Which action resolves the issue?

A. Configure the SAN boot target in the service profile.

B. Configure the SAN boot target to any configuration mode.

C. Use a predefined local disk configuration policy.

D. Remove the local disk configuration policy.

Refer to the exhibit.

An engineer is investigating a role mapping issue on a switch. The users report that they cannot view the IP addresses under the tenant "corp". Which action resolves the issue?

A. Add the users to the RADIUS server.

B. Update the UNIX ID.

C. Configure the correct secret password between the APIC and the RADIUS server.

D. Add the updated avpair to include/corp/admin/

You need to verify that the leafs and the leaf ports are programmed correctly. Which command should you run?

A. show vlan brief

B. show vlan extended

C. show hsrp brief

D. show port-channel summary

Refer to the exhibit.

An engineer deploys a SAN environment with two interconnected Cisco MDS 9000 Series Switches. When the engineer attempts a zone merge, it fails with the error that is presented in the exhibit. Which action resolves the issue?

A. Import or export a zone set between the switches to synchronize the switches.

B. Change the name of one of the zones to match the other zone set.

C. Set the distribute policy of the zone to full.

D. Ensure that the zone members have different names.

Refer to the exhibit.

The EEM applet must generate a syslog message when a BGP adjacency flaps. This message must be displayed to the console of the switch. However, when a BGP adjacency failure is simulated, no syslog message is displayed. Which action resolves the issue?

A. Add the event-default action statement.

B. Modify the policy to use the snmp trap action.

C. Adjust the policy to match an SNMP OID.

D. Set the logging priority to Wamings.

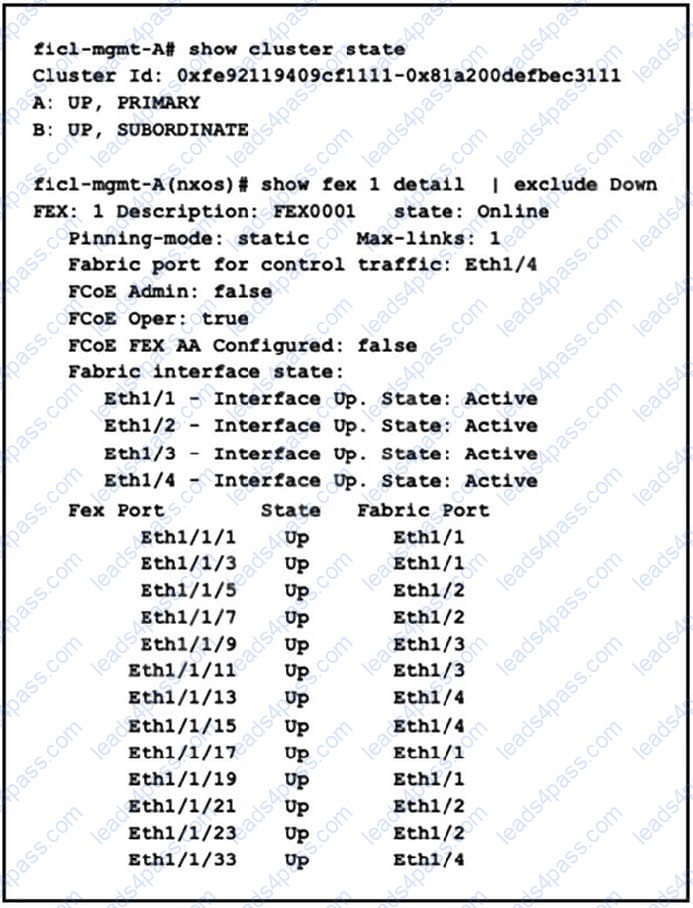

Refer to the exhibit.

A network engineer finds one of the fabric interconnects offline when connecting L1 and L2 ports on both fabric interconnects. Which action resolves the issue?

A. 1. Connect to Fabric Interconnect B.

2.

Verify the cluster status and HA election.

3.

Validate Fabric Interconnect B hardware issues.

B. 1. Connect to Fabric Interconnect A.

2.

Verify the cluster status and HA election.

3.

Validate Fabric Interconnect A hardware issues.

C. 1. Connect Fabric Interconnect B and change the role to primary.

2.

Reboot Fabric Interconnect B.

3.

Add the Fabric Interconnect A as subordinate fabric to the cluster.

D. 1. Connect Fabric Interconnect B and execute "Erase configuration"

2.

Reboot Fabric Interconnect B.

3.

Add the subordinate Fabric Interconnect to the cluster.

Refer to the exhibit.

A network engineer upgrades the firmware of a Cisco Fabric Interconnect from boot flash. During the process, the fabric interconnect reboots and displays the message shown in the exhibit. Which action resolves the issue?

A. Remove the service pack and upgrade through the auto-install procedure

B. Reset the I/O module and install the firmware image from the boot flash

C. Boot the kickstart image from boot flash and load the system image

D. Reload the switch and boot the kickstart image from the TFTP server

An engineer configures FCoE between a set of ESXi hosts and a Cisco Nexus 5000 Series Switch. The Converged Network Adapter of the host fails to receive the response from the Cisco Nexus device. Also, the VFC interface is in a down state and the FIP adapter fails to receive 802.1q tagged frames. The host interface is configured for VLAN trunking. Which action resolves the issue?

A. Activate the reception of Xoff pause frames from the server

B. Configure the UF link as a spanning-tree edge port

C. Enable the active STP port state on the bound Ethernet interface

D. Set the bound Ethernet trunk interface to non-FCoE native VLAN

DRAG DROP

A firmware upgrade on a fabric interconnect fails. A bootflash contains a valid image. Drag and drop the recovery steps from the left onto the correct order on the right.

Select and Place:
