200-301 Online Practice Questions and Answers

Refer to the exhibit.

The entire contents or the MAC address table are shown. Sales-4 sends a data frame to Sales-1.

What does the switch do as it receives the frame from Sales-4?

A. Map the Layer 2 MAC address to the Layer 3 IP address and forward the frame.

B. Insert the source MAC address and port into the forwarding table and forward the frame to Sales-1.

C. Perform a lookup in the MAC address table and discard the frame due to a missing entry.

D. Flood the frame out of all ports except on the port where Sales-1 is connected.

When a site-to-site VPN is configured which IPsec mode provides encapsulation and encryption of the entire original IP packet?

A. IPsec tunnel mode with AH

B. IPsec transport mode with AH

C. IPsec tunnel mode with ESP

D. IPsec transport mode with ESP

How does QoS optimize voice traffic?

A. reducing bandwidth usage

B. by reducing packet loss

C. by differentiating voice and video traffic

D. by increasing jitter

Which statement about VLAN configuration is true?

A. The switch must be in VTP server or transparent mode before you can configure a VLAN

B. The switch must be in config-vlan mode before you configure an extended VLAN

C. Dynamic inter-VLAN routing is supported on VLAN2 through VLAN 4064

D. A switch in VTP transparent mode save the VLAN databases to the running configuration only

Which implementation provides the strongest encryption combination for the wireless environment?

A. WPA2 + AES

B. WPA + AES

C. WEP

D. WPA + TKIP

Refer to the exhibit.

VoIP is being implemented in the network using VLAN ID 73 and named "VoIP". Each user needs a Cisco IP phone at their desk. Switchport e0/0 has been configured as an access port in the data VLAN. Cisco Discovery Protocol is enabled globally.

Which command sequence completed the configuration?

A. vlan73 name VoIP e0/0 switchport voice vlan dot1p

B. vlan 73 name VoIP e0/0 switchport trunk allowed vlan 72,73 switchport voice vlan 73

C. vlan 73 name VoIP e0/0 switchport mode trunk channel-group 73 mode active

D. vlan 73 name VoIP e0/0 switchport voice vlan 73

Refer to the exhibit.

Router R14 is in the process of being configured. Which configuration must be used to establish a host route to PC 10?

A. ip route 10.80.65.10 255.255.255.254 10.80.65.1

B. ip route 10.8065.10 255.255.255.255 10.73.65.66

C. ip route 1073.65.65 255.0.0.0 10.80.65.10

D. ip route 10.73.65.66 0.0.0.255 10.80.65.10

DRAG DROP

Drag and drop the use cases of device-management technologies from the left onto the corresponding types on the right.

Select and Place:

DRAG DROP

Drag and drop the IPv6 addresses from the left onto the corresponding address types on the right.

Select and Place:

DRAG DROP

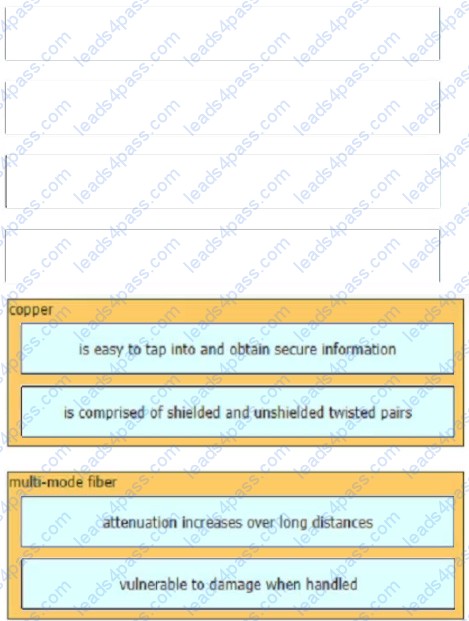

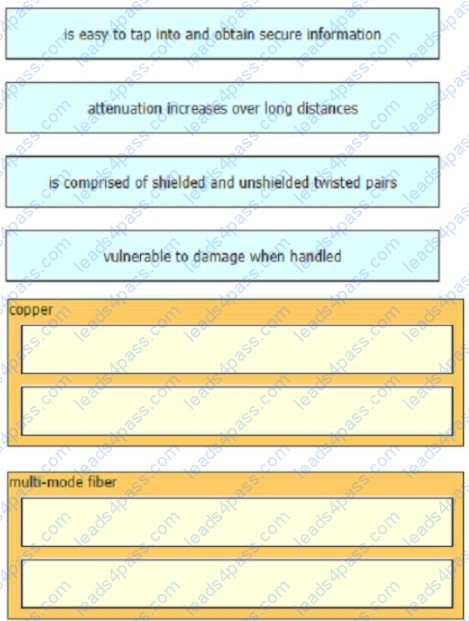

Drag and drop the characteristic from the left onto the cable type on the right.

Select and Place:
